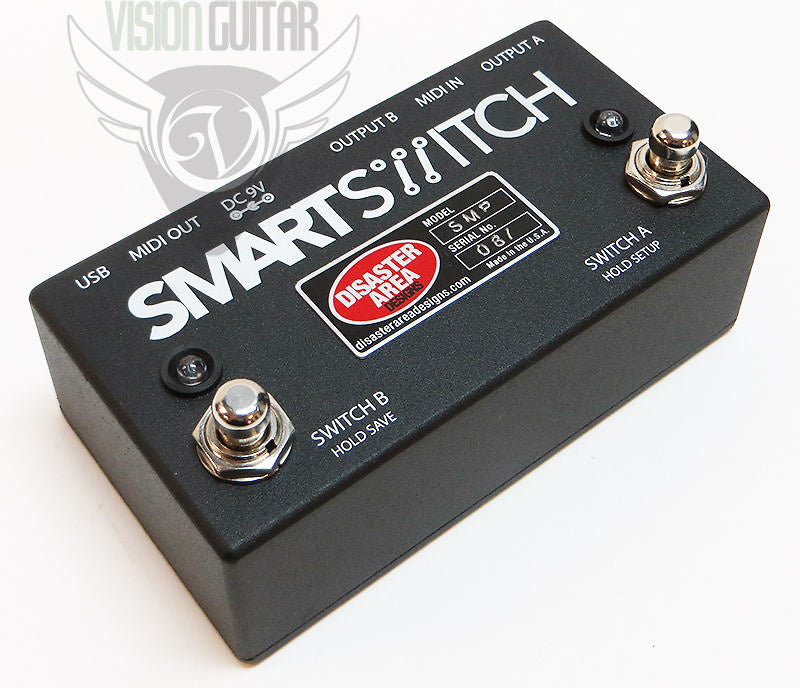

Disaster Area Designs SMARTSwitch MIDI Channel Switcher
by Disaster Area Designs
The SMARTSwitch is a compact MIDI controlled channel and remote switch. Two isolated 1/4_ mono jacks connect to your gear, and the SMARTPedal interface allows for full real-time control or direct MIDI access. The SMARTSwitch can change your amp channels in response to incoming MIDI Continuous Controller (CC) or Program Change (PC) messages on any MIDI channel.
Features:
- Dual isolated channel or remote switch outputs
- Output A may act as a single TRS output
- Instant access to switch settings
- Outputs may be bypassed or engaged using MIDI CC
- Outputs may be assigned to incoming MIDI program changes using MIDI learn
- Each output is configurable to normally-closed, normally open, or momentary function.
- Fully passive signal path can switch DC or control voltage
- Optical relay switching no moving parts.
- 9VDC 48mA max
- MIDI IN & MIDI OUT connectors
- MIDI INPUT merges data through to output
- MINI-USB port for firmware updates and feature additions
- MIDI channel selectable using MIDI CC messages
- DC 9V, center-negative power input (current varies by pedal.)
- Die-cast aluminum housing with textured or glossy powder-coat finish
- Jacks spaced to accommodate most straight and right-angle plugs (George LÕs, Lava Mini-ELC, GLS Pancake, etc.)
