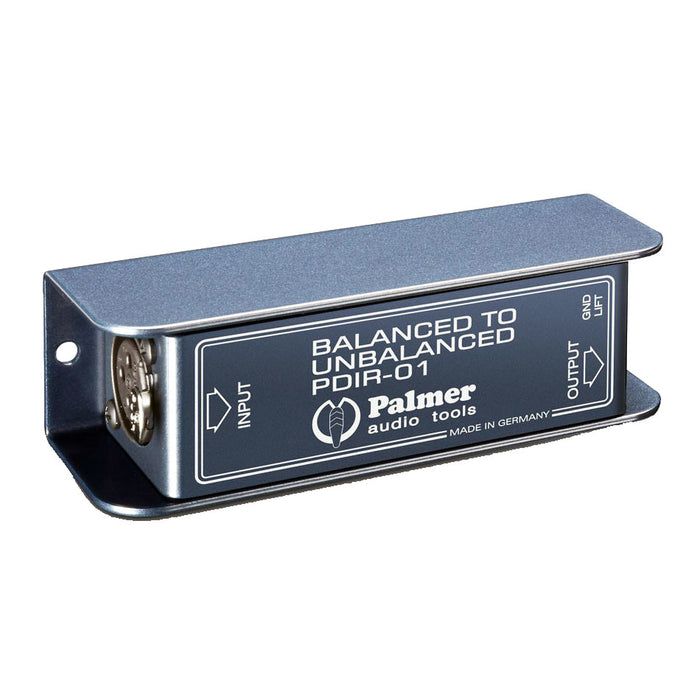

Many try using a DI-Box “backwards” in order to convert a balanced signal to unbalanced. The resulting mismatch generally leads to disappointing results. The PDIR (DI-Reverse) offers a clean and reliable solution whilst additionally isolating the two connected devices via transformer.

• Product type: DI Boxes
• Channels: 1
• Inputs: 1
• Input connectors: XLR
• Max. input level: +6 dBu
• Input impedance: 2 k Ohm(s)
• Outputs: 1
• Output connectors: 6.3 mm jack
• Max. output level: +6 dBu
• Output impedance: 2 k Ohm(s)
• Frequency response: 20 - 20000 Hz
• Transformer balanced: Yes
• Ratio: 1:1
• Controls: ground lift
• Cabinet material: sheet steel
• Cabinet surface: Powder coated
• Width: 110mm, Depth 35mm, Height 39mm
