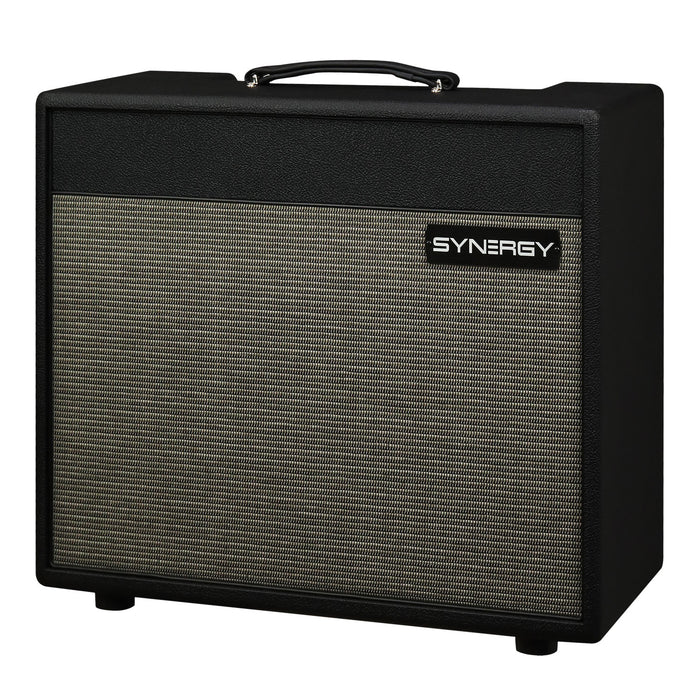

Synergy SYN-20IR 1×12 Combo Amp

ALL-TUBE 20 WATT 3-CHANNEL PREAMP MODULE PLATFORM 1×12” COMBO AMP IR EQUIPPED

The SYN-20IR 1×12” Combo Amp utilizes Synergy’s patented all-tube modular system, allowing you to quickly and easily swap preamp modules to endlessly expand your tonal palette. The SYN-20IR 1×12” Combo Amp is the world’s most flexible, convenient, and tonally versatile all-tube amplifier head. The amp’s built-in vintage American-style clean channel coupled two additional channels from your favorite Synergy preamp module, makes the SYN-20IR 1×12” Combo Amp a three-channel tonal beast ideal for every player, every style, and every situation.

Each all-tube, two-channel module is equipped with dual 12AX7s and features the exact preamp circuitry as the legendary amplifier it is based on. In most cases the SYNERGY module offers more features in comparison to the amp itself. The Synergy engineering team painstakingly works with each brand partner to design modules that achieve the most accurate tonal representation of their famous amplifier model.

NEXT-LEVEL POWER AMP CONTROL

The SYN-20IR 1×12” Combo Amp offers unique controls for STRUCTURE and REACTANCE that tailor the response of the amp’s all-analog power section. The revolutionary STRUCTURE feature optimizes the head for any channel by offering three distinct power amp configurations and feedback which are assignable to each of the amp’s channels. The STRUCTURE feature significantly alters the overall contour and feel of the SYN-20IR 1×12” COMBO AMP.

There are three Structure modes to choose from:

• Mode A: Balanced negative feedback for a clear yet punchy sound

• Mode B: Vintage style phase inverter with relaxed mids and a bright, shimmering high end.

• Mode C: Modern HiFi style phase inverter and low negative feedback resistor delivers a modern, tight feel with solid lows and a darker high end.

REACTANCE is similar to a presence knob, but with a dynamic response and variable phase inverter which simultaneously shapes the middle and treble frequencies. This powerful control helps tailor the sound to your chosen module and Structure setting.

3-BUTTON MIDI FOOTSWITCH – MIDI CONTROL

The SYN-20IR 1×12” Combo Amp includes an easy-to-use 3-button MIDI footswitch that lets you save and access any combination of channels, amp structures and onboard IRs. With the tap of your toe, you can, for example, switch from your module’s high-gain crunch with a 4×12 IR and Structure Mode C to the amp’s onboard clean channel through a vintage 1×12 IR and the open-sounding Structure Mode A.

You can also connect external MIDI switchers and controllers, giving you access to up to 128 user-created presets. The included Synergy Editor Software makes it easy to assign and organize your presets for maximum flexibility.

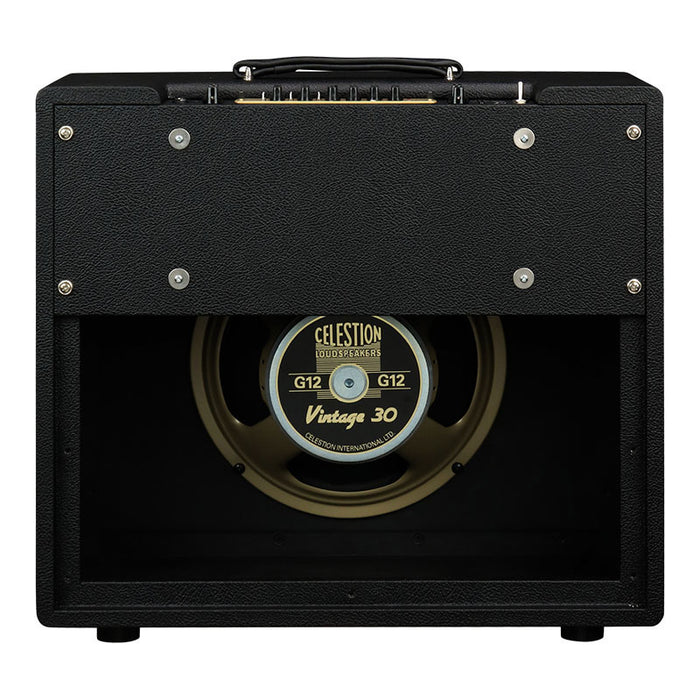

CELESTION VINTAGE-30 LOADED

Celestion’s Vintage 30 sits high among the world’s most revered electric guitar speakers. It’s vocal midrange, detailed top end, and tight lows makes it the ideal speaker for the SYN-20IR Combo amp.

INDUSTRY-LEADING IR TECHNOLOGY

The SYN-20IR 1×12” COMBO AMP boasts a powerful digital engine dedicated to its four onboard impulse responses (IR) and power amp simulation in the most accurate and natural-sounding way. Utilizing an oversized 500 MHz ARM DSP processor, it delivers these professionally captured IRs with under 1ms of latency, far surpassing competing products. Add and manage your own IR library, as well as the 13 included IRs, using the free Synergy Editor software.

FEATURES:

20W 1×12” all-tube modular guitar amplifier
Assembled in the USA
Celestion Vintage-30 Loaded
Tubes: 2 x EL84 Power Tubes, 2 x 12AX7 Preamp Tubes (two additional 12AX7 in the module)
Built-in clean channel based on vintage American tube Combo Amps
Volume and Tone control
Selectable Power Amp Structure Modes:
Mode A: Balanced negative feedback for a clear yet punchy sound
Mode B: Vintage style phase inverter with relaxed mids and a bright, shimmering high end.
Mode C: Modern HiFi style phase inverter and low negative feedback delivers a modern, tight feel with solid lows and a darker high end.
Master Volume control
Reactance dynamic presence control
Low-latency IR cabinet simulation (bypassable)
4 IR presets, individually programmable per channel
Load your own IRs via the Software Editor
Included 3-button programmable MIDI footswitch pedal
7-Pin MIDI Cable Included
Ultra-transparent series FX loop
XLR Balanced Output with Ground Lift
Cab-less operation
Headphone Output with dedicated VOLUME control
MIDI programmable (up to 128 presets)
MIDI/Footswitch Input
1×16 ohm, 2 x 8ohm (parallel) and 2×4 ohm (parallel) speaker connectors
Synergy Software Editor
Includes a 6’ USB Cable
Solid Baltic Birch Construction
Limited 5-Year Warranty
Dimensions: 22” (W) x 10.25” (D) x 20.75” (H)
Weight: 44.7 lbs.
