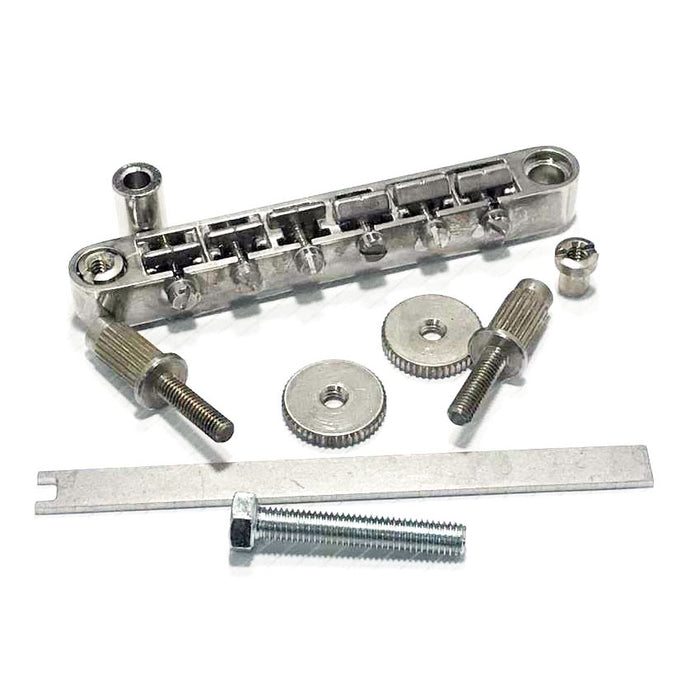

Faber 3031-1-PLUS USA/ABR-1 Tone-Lock Bridge Aged Nickel
by Faber
$159.00
Light years ahead of the usual “set screw” method of locking a bridge to the studs, one look at our system will show its design superiority and how it actually can increase sustain! Pre notched NICKEL PLATED BRASS SADDLES standard.
Standard in this Tone-Lock™ Bridge Kit:
Tone-Lock™ Bridge – Standard Matching Pre-Notched Saddles
“PLUS” USA/ABR-1 – Bridge Posts
Tone-Lock™ Lock Nuts – Pair of 6-32 (ABR-1) Lock Nuts
A pair of Lock Nuts for Tone-Lock™ bridge, in either 4mm or ABR-1 thread, depending upon the application.
Lock Nut/Tailpiece Stud Tool – Corsa-Faber Locknut Tool
For tightening tailpiece studs without damaging the plating, as is possible using a conventional screwdriver. Use as shown for tailpiece studs. For Tone-Lock™ bridge lock nuts, use the unnotched end when the top of the bridge stud is below the lock nut slot; use the notched end when the bridge protrudes into the lock nut slot. Included FREE with Tone-Lock™ Bridges, Tone-Lock™ Kits, & Tone-Lock™ Master Kits.
Standard in this Tone-Lock™ Bridge Kit:
Tone-Lock™ Bridge – Standard Matching Pre-Notched Saddles
- Length: 3.31″/84.1mm
- Saddle radius: 12″
- Post spacing: 2.91″/74.0mm (0.8mm lock nut clearance to accommodate 73.6mm-74.4mm post spacing)
- Post hole diameter (stepped): upper, .293″/7.45mm; lower, .2165″/5.5mm
- String Spread (center-to-center, outer saddles): 2-1/16″/2.0625″/52.39mm
“PLUS” USA/ABR-1 – Bridge Posts
- Material: Studs, Bell Brass, plated; Thumbwheels, Brass, plated
- Weight, with thumbwheels: .75 oz./21.3g
- Overall length: 1.25” / 31.75mm
- Length below flange: .55” / 14.0mm
- Stud length, above flange: .59” / 15.0mm
- Stud thread, 6-32 (ABR-1)
- Diameter, lower section: .276” / 7.0mm
- Flange diameter: .375” / 9.5mm
- Flange thickness: .061” / 1.55mm
- Thumbwheels: Diameter: .63″/16mm, Thickness: .11″/2.8mm
Tone-Lock™ Lock Nuts – Pair of 6-32 (ABR-1) Lock Nuts
A pair of Lock Nuts for Tone-Lock™ bridge, in either 4mm or ABR-1 thread, depending upon the application.
Lock Nut/Tailpiece Stud Tool – Corsa-Faber Locknut Tool
For tightening tailpiece studs without damaging the plating, as is possible using a conventional screwdriver. Use as shown for tailpiece studs. For Tone-Lock™ bridge lock nuts, use the unnotched end when the top of the bridge stud is below the lock nut slot; use the notched end when the bridge protrudes into the lock nut slot. Included FREE with Tone-Lock™ Bridges, Tone-Lock™ Kits, & Tone-Lock™ Master Kits.
