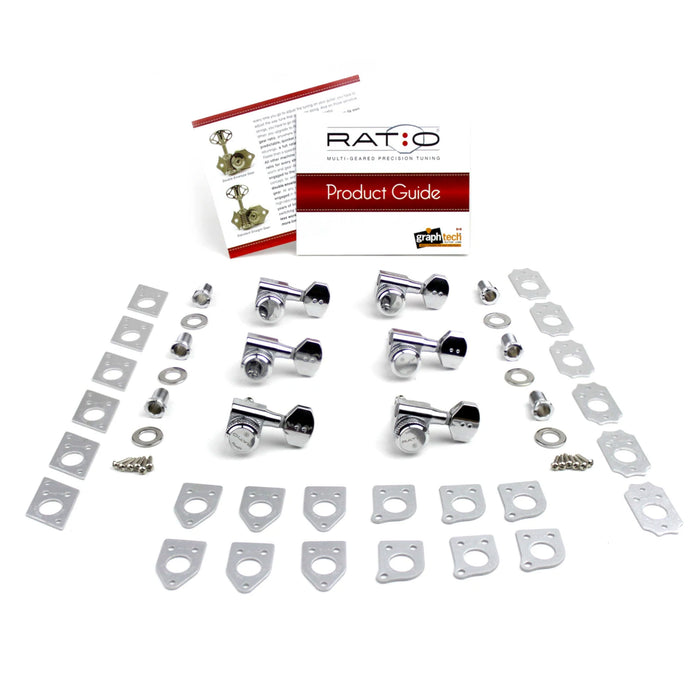

Graph Tech 6IL Ratio 10mm Mini Staggered Locking Machine Heads PRL-9721-C0

The PRL-9721 is a right-handed set of Locking RATIO® Calibrated Machine Heads for electric guitar that use 6-in-line tuners with staggered posts (eliminates the need for a string tree).

It has a two pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates.

4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.

RATIO® patented gear technology

RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation.

• From Low E to High E 39:1, 24:1, 20:1, 35:1, 20:1, 12:1.
• We balanced the gear ratios to each string simplifying the tuning process.
• With RATIO®, a half turn is a semi-tone!
• Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string.

Specifications:

• Gear ratio: unique for each string position - one turn-one tone

• Peg holes diameter required: 13/32" (10mm)

• String post diameter: 0.236" (6mm)

• String post length to string hole: 0.827” (21mm) - 0.787" (20mm) - 0.748"(19mm)

• Weight per single machine head: 0.083lbs (38g)

• Weight per set of six: 0.496lbs (225g)

• String diameter up to 72 gauge

• Includes 6 machine heads, mounting screws and bushings

• Includes complimentary 4 sets of aluminum mounting plates
