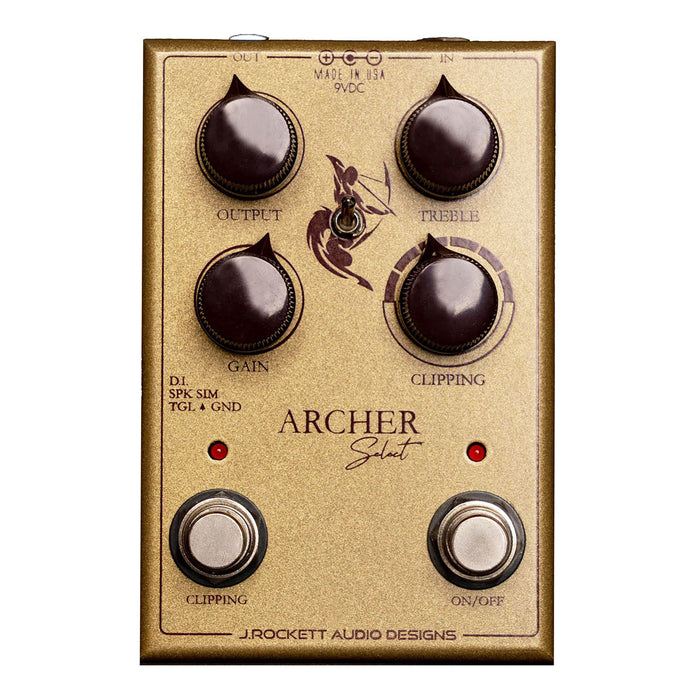

Rockett Archer Select Overdrive Boost Pedal
If you simply leave the clipping diode foot switch off it defaults to the stock diodes (OA10’s). With the clipping dial you can choose between 6 additional clipping diodes. Depending on which diodes you have the selector knob on you can A/B between the stock diodes and the selected diodes. Diodes range from lowest output to highest output when turning clockwise. (Very Subtle)
D.I. Speaker Simulator is something we included for those who like to be able to monitor their OD sound via direct or have the option for direct recordings. The ground switch is solely there for the D.I. incase you have grounding issues.
IMPORTANT!! - These are “clipping” diodes so in order to hear the difference the pedal has to be clipping or overdriving. You will not hear a difference if you do not have the gain up. If you crank the gain that is where you will hear the biggest difference. Keep in mind that most K style users set the gain low so the clipping
diodes will have a subtle influence. There is a certainly a difference but be prepared for it to be very subtle.
PLEASE BE AWARE - If you rotate the Diode selector knob you will hear slight pops. It is best to disengage
DEFAULT DIODES ARE - OA10’S (Our Favorite). This means that when the clipping foot switch is not engaged
these are the diodes you will hear. Once you engage the clipping foot switch you will hear whichever set of diodes you have selected on the clipping dial.
There is a subtle difference between all of the clipping diodes but they are arranged from the lowest forward voltage to highest forward voltage. This means between the OA10 diodes vs the Red LED’s there will be the biggest volume jump.
As of production today these are the diodes we have selected, however, since all but the LED’s are NOS germanium diodes, availability can and will most likely change in the future. For now we have a healthy supply. Please experiment and remember you only hear clipping diodes when they are clipping so experiment with the gain. via the foot switch before rotating.
