Cioks 4 Expander Power Supply (Expander for DC7)
by Cioks
$139.00

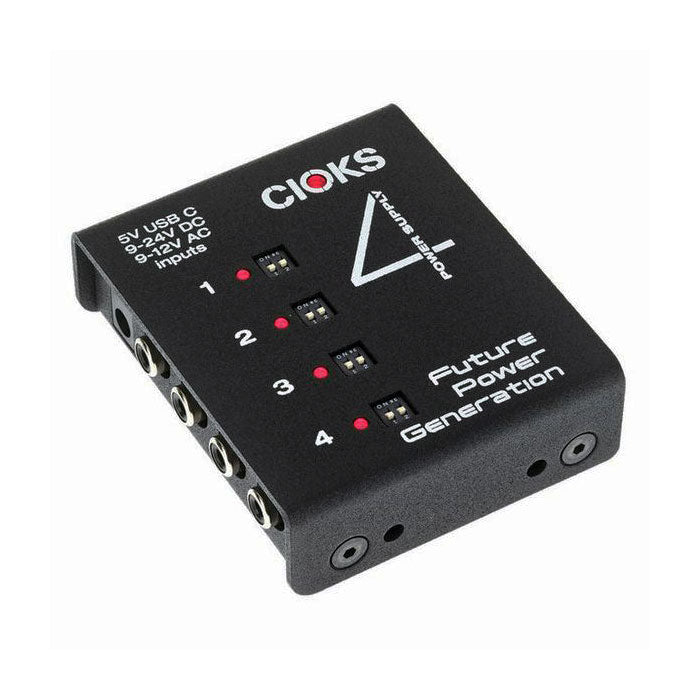

Compact Multi-Output Cioks DC7 Expander Power Supply for Effect Pedals. This is not a stand alone power supply. Its an expander supply to be used with a DC7.
Note: The total output power is max. 24 W, provided a suitable and sufficient input power source is used. Full output power can be reached if a 24 V source with a min. 30 W output power is used (ex. Cioks 7).
- 1"/25.4 mm profile (like the Cioks DC7)
- Ultra-low noise achieved by multi-stage filtering
- 4 Isolated DC outputs (each with 6 W)
- 4 Selectable voltages on each output: 9 V DC / 660 mA or 12 V DC / 500 mA or 15 V DC / 400 mA or 18 V DC / 330 mA
- 5 V USB C input for powering the device with a power bank
- Non-polarized DC input socket which accepts everything from 9-24 V DC or 9-12 V AC, including 24 V EIAJ-05 cable
- Global overload status LED
- Up to 6 pedals can be connected with the supplied Flex cables
- Weight: 230 g
- Dimensions (W x D x H): 74 x 88 x 25.4 mm
- Includes mounting hardware for Pedaltrain and Temple Audio boards and 5 Flex cables (2x 1030, 2x 1050, 1x 1533)
Note: The total output power is max. 24 W, provided a suitable and sufficient input power source is used. Full output power can be reached if a 24 V source with a min. 30 W output power is used (ex. Cioks 7).
