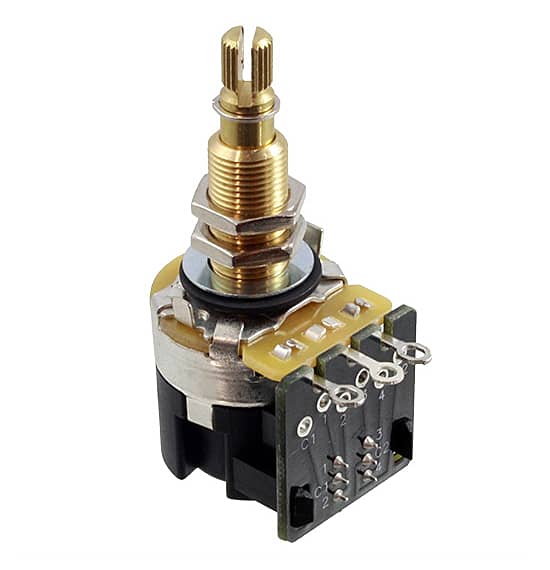

CTS 500K Premium DPDT Audio Push-Pull Potentiometer Long Shaft
CTS 500K Premium DPDT Audio Push-Pull Potentiometer - Long Shaft
On these top quality CTS control pots, the switch contacts are on the side, not the back. This makes them shorter, so they'll fit most guitars without routingÑonly 1" cavity depth is needed.
The double-pole double-throw switch adds lots of wiring options. Pull the knob to coil-cut a humbucker, switch a pickup in/out, or control anything: the switch is electrically separate from the control pot.
CTS pots have long been the first choice in American guitars. In addition to their space-saving size, they feature a longer-life brass shaft and tighter ±10% resistance tolerance compared to CTS products offered elsewhere.
Their precision audio taper gives smoother, more accurate response than you'll get with economy pots. The volume swells evenly from 0 to 10, with no abrupt changes.
These are split shaft for fine-knurled (24-spline) knob, or with smooth shaft to fit a set-screw knob.
- Split shaft, fine knurling
- Diameter: 0.235" (5.95mm)
- Thread: 3/8" x 32
- Thread height, long shaft 3/4" (19.05mm)
- Required mounting hole diameter: 3/8" (9.52mm)
- Required cavity depth: 1" (25.4mm)
