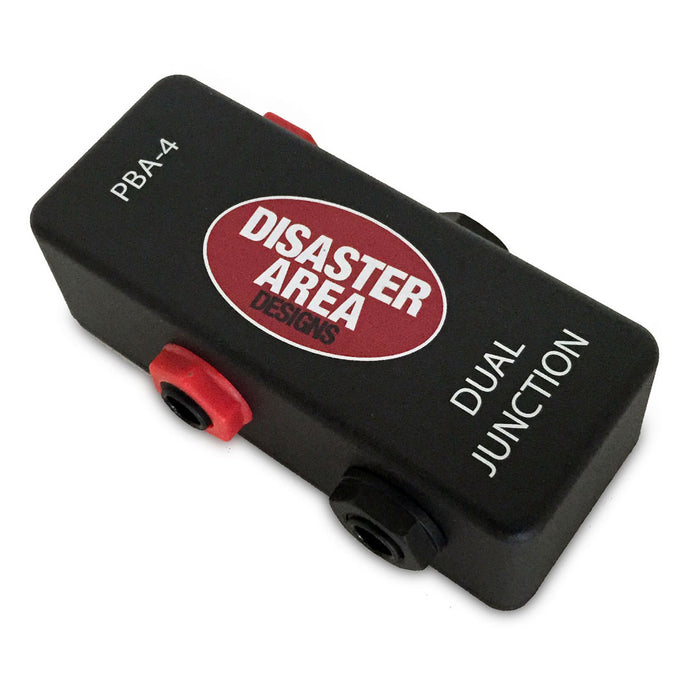

Disaster Area Designs PBA-4 Dual Junction Box Standard Version
The PBA-4 Stereo Junction Box is a passive jack module for your pedalboard. Consisting of four high-quality isolated jacks, the PBA-4 can serve in a variety of signal routing applications. The PBA-4 is small enough to mount underneath the angle of most Pedaltrain boards (including PT-Jr, PT-1 / 2 / 3, PT-Pro, PT Novo series, and PT Classic series) to allow for a convenient input or output point. Connect two pedalboard patch cables between your first and last pedals and the PBA-4, and then you can plug in your instrument cables directly to your board saving valuable setup time. Use a single PBA-4 as both input and ouput points for your board, or use the PBA-4 as a stereo output junction. Both tip and ring connectors are wired through on the PBA-4, so it can also serve as a connection for expression pedals or stereo patch cables.
STANDARD VERSION: The standard version has each pair of jacks wired together in parallel.
- Compact size – 3.6″ x 1.5″ x 1.2″ (92mm x 38mm x 31mm)
- Passive design, no batteries or power supply required
- High quality 1/4″ Neutrik jacks
- All three contacts are wired through (Tip / Ring / Sleeve) for stereo or expression pedal use (STANDARD VERSION ONLY)
