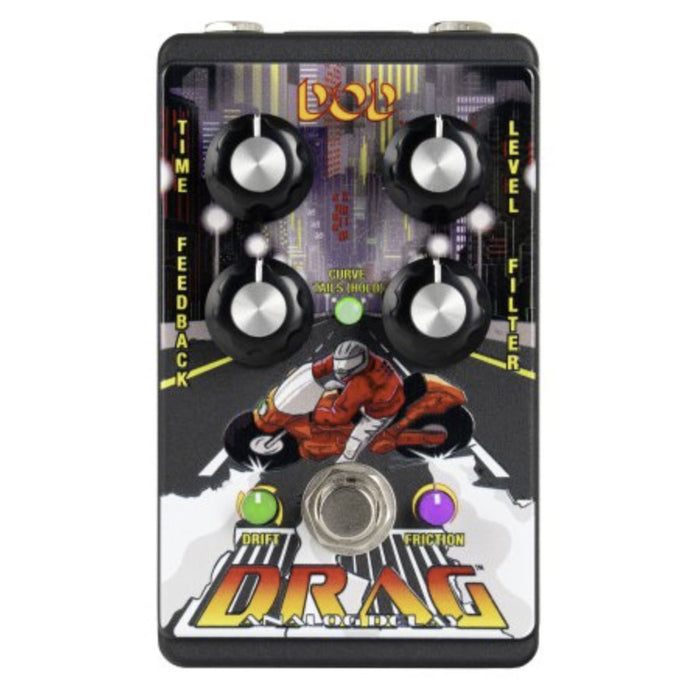

DOD Drag Analog Delay Pedal

The DOD DRAG™ is an analog delay pedal that not only pushes sonic boundaries, but goes far beyond the capabilities of any standard delay pedal. From a quick rockablilly slapback delay to long, drifting, LFO-enriched psychedelic oscillation, DRAG™ exceeds all expectations.

The DOD DRAG™ is an analog delay pedal that not only pushes sonic boundaries, but goes far beyond the capabilities of any standard delay pedal. From a quick rockablilly slapback delay to long, drifting, LFO-enriched psychedelic oscillation, DRAG™ exceeds all expectations. The Two new patent-pending SlideStop™ & Evade™ Friction™ categories, engaged by holding down the footswitch to bring your signal to a screeching halt & reaccelerating as you release it, captures the exhilaration of fast-paced street racing. These “never been done before” features redline its all-analog engine beyond reasonable limits. The third Friction™ category is borrowed from DRAG’s big brother with its “Rubbernecking™ ” mode providing octave up & octave down pitch bending capabilities.

The FRICTION knob gives you full control over the speed of your maneuvers. The DRIFT knob, in a sense, adjusts the drift dynamics of your street bike - that is, the speed and depth of the drift. You, as the rider, also have complete freedom over your drifting (modulation) style using the Curve™ control. Includes the new patent-pending reversible StagePlate™ enabling optimized grip for various track conditions.

Features:

• Analog BBDs with 750ms delay time (1.5 Sec when “Rubbernecking”)

• Time Warping Effects

• Rubberneck™ Up/Down

• SlideStop™ Shallow/Deep

• Evade™ HopStop™/Slide-n-Go™

• Controllable Runaway Oscillation

• 6 Rotary Controls - Time, Feedback, Filter, Level, Drift, Friction

• 4 Modulation waveforms - Sine, Reverse Saw, Square, Random

• 3 Modulation Speed/Depth Ranges- Light, Medium, Heavy

• Top-jack chassis design

• 3.5mm input enables full DRAG™ functionality w/ optional FS3X

• Standard +9V DC tip-negative barrel jack

• Reversible StagePlate™

• True Bypass

• Dimensions: 4.8” (L) x 2.8” (W) x 1.5” (H), 121mm (L) x 71mm (W) x 38mm (H)

• Weight: 0.67 lbs. (0.30kg)

• Input: 1/4” Instrument

• Output: 1/4” Instrument

• Chassis Material: Alumimum

• Power Supply: PS0913DC (Current draw <120mA

• Warranty: 1 Year
