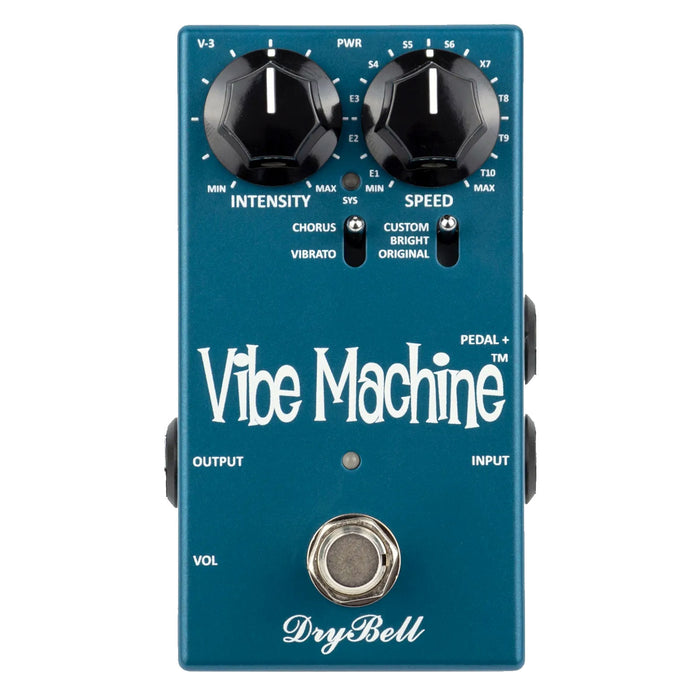

DryBell Vibe Machine V-3 Vibrato Pedal
The main difference between V-3 and V-2 is in the modulation EQ. V-2 modulates just a slight part of your main tone (mid-range focused modulation), while V-3 blends in nicely with your main tone and modulates it without changing the EQ. V-3 has a wider modulation and brings you more depth. The Intensity’s character has also changed.
V-3 features the same versatile custom sound options as V-2. There are 6 ‘set and forget’ side trimmers: CHORUS, GRIT, CUSTOM, SYM, RANGE and VOLUME. All these controls come with initial factory settings. Check the manual in the support tab for more detailed descriptions, but to begin playing you don’t need the manual or to adjust anything, just plug in and enjoy!
The CHORUS trimmer adjusts the depth of vibe modulation so the user can adjust the swirl/watery/chewy character of the Chorus sound. The CHORUS trimmer also affects the low end frequencies of the Chorus throb.
With GRIT you can set the overall brightness, it acts as a low pass passive tone control and also defines the output impedance. Try a fuzz/dirt pedal or just an amp after the V-3 and with GRIT you can find your tonal sweet spot with whatever is next in chain.
The CUSTOM trimmer adjusts the input impedance when the three way ORIGINAL/BRIGHT/CUSTOM switch is set to the CUSTOM position. If you switch guitars on stage, sometimes you may want to flip this switch to balance your guitar’s brightness.
The SYM and RANGE define the light bulb bias and character/response of the Vibe movement.
With the VOLUME trimmer at its maximum setting, it boosts your volume above and beyond unity gain.
The V-3 can be used with any passive expression pedal with a linear pot. Also, the V-3 has several functions that are controllable with the DryBell F-1L footswitch or any other simple footswitch. With the footswitch you can engage the CANCEL function, TAP TEMPO feature, Fast/Slow with adjustable Leslie® ramp delay or a Two speed function.
CANCEL function – Just like on an original Uni-Vibe®, a warm & darker sounding preamp (Cancel on original Uni-Vibe®) is available using an expression pedal. Please refer to the Options manual for more information.
Just like on V-2, there are a couple of ‘set and forget’ options like different footswitch type compatibility, expression pedal pot taper adjustment and more. Check the V-3 options manual to see all of its features.
