Home DS Engineering Drill Instructor - Tap Tempo Distributor

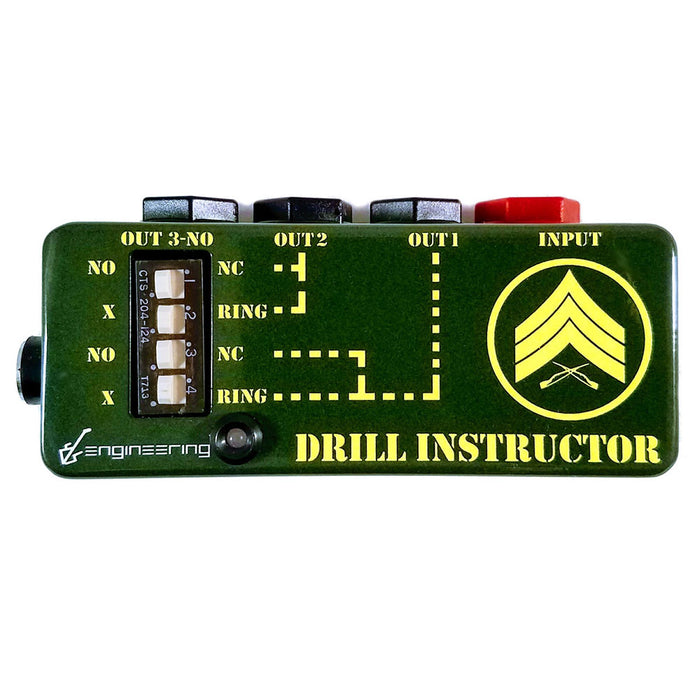

DS Engineering Drill Instructor - Tap Tempo Distributor

DS Engineering Drill Instructor - Tap Tempo Distributor

by DS Engineering
Sold out
$39.00

Share this:

Share on Facebook Tweet on Twitter Share on Google+ Pin on Pinterest

It takes a strong leader to create synergy within a group.  The Drill Instructor power-up grants you control of cadence.  But this is no ordinary commander.  His formidable shout tolerates nothing but perfect rhythm.

The highlight of the Drill Instructor's functionality is its ability to make one effect's tap tempo switch control up to three other pedals.  Simply connect the external tap tempo jack of the master pedal to the Drill Instructor's input jack.  Now tapping the tempo on the master pedal will simultaneously update the tempo on the other pedals.  The master pedal can even control other pedals' hold functions such as infinite feedback, even if the master pedal itself doesn't support it!

The two configurable outputs on the Drill Instructor can be either normally-open or normally-closed.  The ring connector of each configurable output can also be engaged, making them compatible with certain Strymon pedals (TRS cable required).  Modified pedals are also supported, of course.  And because we like to swap out pedals as much as you do, the configuration DIP switches are on the face of the Drill Instructor for unparalleled accessibility and ease of use.

Do you need more than 3 outputs?  The Drill Instructor can be cascaded by plugging one of the first unit's outputs into the next unit's input.  The input to output latency is nearly zero, which allows you to daisy chain as many units as you could possibly need.  The Drill Instructor can also be used as an output expander for your current tempo controller by turning one output into three.

Since it doesn't require any direct manipulation after it's configured, the Drill Instructor can be conveniently mounted underneath elevated platform style pedalboards or tucked away in a hard to reach space on a flat board.  This maximizes the amount of premium space on your board for those sweet, sweet effects.

  • Tap tempo "distributor" that duplicates one input signal into three outputs
  • Allows tap tempo switch of one pedal to control up to three others
  • Input can be connected to external tempo jack of an effect, CV signal, or to a simple normally-open momentary switch, such as the Mandate
  • Two configurable outputs and one hardwired normally-open output
  • Compatible with "hold functions" such as infinite feedback or ramping
  • Multiple units can be cascaded to increase the number of outputs
  • Can be mounted underneath pedalboard to conserve space on top
  • Electrically isolated jacks to prevent ground loops and other common multi-tap problems
