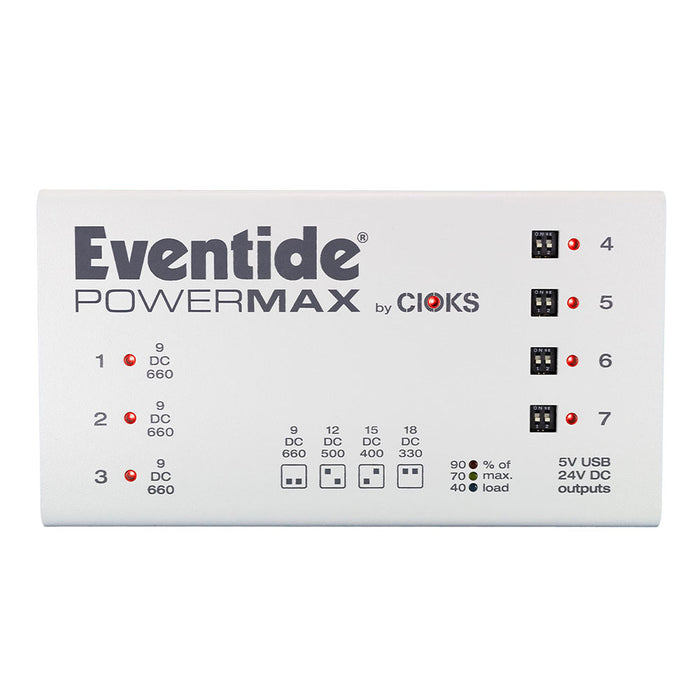

Eventide PowerMax Version 2 Pedalboard Power Supply
by Eventide
$209.00
Ultimate Pedalboard Power Solution
PowerMax sets the new standard for versatility and performance in a trim, light and easy to mount pedalboard power supply. PowerMax’s state-of-the-art design ensures your pedals will achieve maximum fidelity. PowerMax can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only 1.1lb and 1" thick, it’s a fit companion to H9 or any other pedals that grace your pedalboard. Features a state-of-the-art universal power supply (85-265V) which can be used worldwide.
Features
PowerMax comes with 13 flex cables compatible with various pedal types.
PowerMax sets the new standard for versatility and performance in a trim, light and easy to mount pedalboard power supply. PowerMax’s state-of-the-art design ensures your pedals will achieve maximum fidelity. PowerMax can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only 1.1lb and 1" thick, it’s a fit companion to H9 or any other pedals that grace your pedalboard. Features a state-of-the-art universal power supply (85-265V) which can be used worldwide.
Features
- New! 24V DC Aux isolated outlet for PowerMini Expander (adding 4 additional outputs) or other high-power pedal
- New! 7 isolated DC-outlets at 6W each
- 3 outlets with 9V DC 660mA
- 4 outlets each selectable with either 9V, 12V, 15V, or 18V up to 660mA
- Powers multiple Eventide, Strymon and other high current pedals
- Smallest and lightest in its class - only 1" thick and 1.1lb
- USB outlet for charging a smartphone or tablet (max. 1A)
- Use anywhere in the world, mains input voltage 90-265V AC
- Ultra-low noise achieved by multi-stage filtering
- Individual status LED on each outlet and global status LED
- State-of-the-art 2-stage switch-mode power supply topology
- Extremely low profile, only 25mm (1 inch) thick
- Mounting hardware for Pedaltrain and Temple boards included
- Optional GRIP bracket provides drill-free mounting on Pedaltrain.
- Built-in true power meter showing the total load
- 13 Flex cables included, 5 for Eventide pedals
- Designed in Denmark, assembled in Poland
PowerMax comes with 13 flex cables compatible with various pedal types.
- 1 x 4030-L 5.5/2.5mm centre positive angled DC plug, 30cm / 12”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
- 2 x 4050-L 5.5/2.5mm centre positive angled DC plug, 50cm / 20”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
- 2 x 4080-L 5.5/2.5mm centre positive angled DC plug, 80cm / 31”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
- 3 x 1030-L 5.5/2.1mm centre negative angled DC plug, 30cm / 12”, black, type 1 (BOSS standard)
- 2 x 1050-L 5.5/2.1mm centre negative angled DC plug, 50cm / 20”, black, type 1 (BOSS standard)
- 1 x 2050-L 5.5/2.1mm centre positive angled DC plug, 50cm / 20”, red, type 2
- 1 x 5050-L 3.5mm tip positive angled Jack plug, 50cm / 20”, black, type 5
- 1 x 1035 Split Flex (Y-cable) with two 5.5/2.1mm centre negative angled DC plugs, 30+50cm / 12+20”, black, type 1 (BOSS standard)
