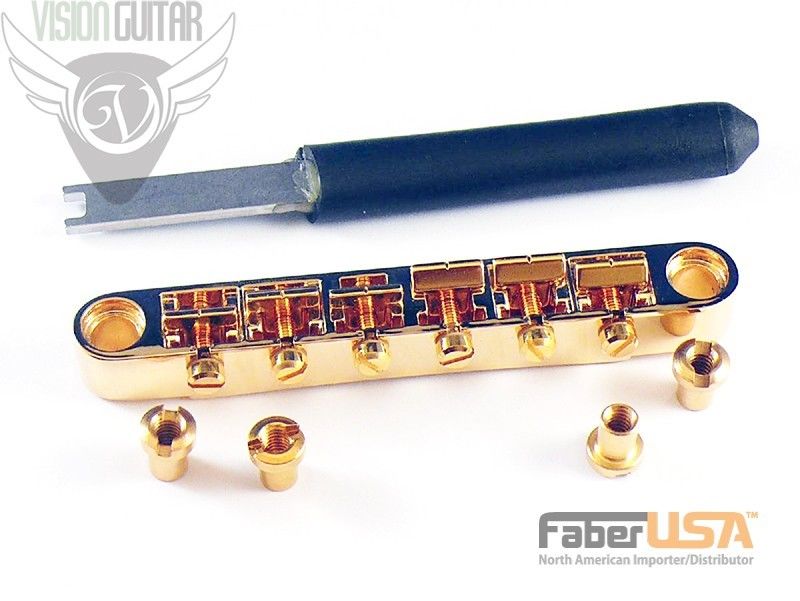

Home Faber TONE-LOCK ABR1 Bridge Fits 6-32 & 4mm Bridge Posts - Gold Finish (3035)
Faber TONE-LOCK ABR1 Bridge Fits 6-32 & 4mm Bridge Posts - Gold Finish (3035)

Faber TONE-LOCK ABR1 Bridge Fits 6-32 & 4mm Bridge Posts - Gold Finish (3035)

by Faber
$97.00

Share this:

Share on Facebook Tweet on Twitter Share on Google+ Pin on Pinterest

Our exclusive “No Gap” technology is also available in our Tone-Lock™ Bridge. Light years ahead of the usual “set screw” method of locking a bridge to the studs, one look at our system will show it’s design superiority and how it actually can increase sustain. With our system, you wont damage your bridge post’s threads – a common occurrence with the set screw method. The Tone-Lock™ Bridge, just like our non-locking ABR-59 bridges, features removable saddles. Saddles have starter notches dead center as standard, but optional non pre-notched saddles are also available. “Universal,” in that lock nuts are provided in each kit for either 6-32 thread pattern (used on Gibson Tune-o-Matic equipped guitars prior to the introduction of the Nashville bridge, and currently on the “Historics”) or 4mm, for use on many imported guitars and on the all Faber® replacement 4mm bridge studs (iNsert™, BSWKIT™, NSWKIT™ and E-Sert™). Nashville equipped guitars, and guitars using large body inserts for the bridge posts, such as Epiphone, can not use the Tone-Lock™ natively. Faber® BSWKIT™, iNsert™, NSWKIT™ or E-Sert™ must be purchased separately.

  • Faber Tone-Lock Bridge - Gold Finish (3035)
  • Alloy: 70% zinc, 30% aluminum
  • Length: 3.31"/84.1mm
  • Saddle radius: 12"
  • Post spacing: 2.91"/74.0mm (0.8mm lock nut clearance to accommodate 73.6mm-74.4mm post spacing)
  • Post hole diameter: upper, .293"/7.45mm; lower, .2165"/5.5mm
  • String Spread (center-to-center, outer saddles): 2-1/16"/2.0625"/52.39mm
  • Universal! Will fit 6-32 and 4mm posts (except Bacchus guitars)
  • Removable saddles for replacement or to cure intonation issues
  • Use directly with ABR-1 bridge posts on Historics
  • Stud spacing: 3.25"/82.55mm
  • Use on any Gibson® with 6-32 bridge posts (not Nashville)
  • For Nashville equipped guitars, Faber® BSWKIT™, iNsert™, or NSWKIT™ is required
  • For most Epiphone and many other non U.S.A. manufactured guitars using a bridge system with large body inserts , the Faber® E-Sert™ is required

Condition: These are brand new, fresh from the factory. You’re purchasing from an authorized Faber dealer.
