Faber Tone-Lock Epiphone Import Bridge E-Sert Aged Nickel 3032 EST
by Faber
Sold out
$149.99
Light years ahead of the usual “set screw” method of locking a bridge to the studs, one look at our system will show its design superiority and how it actually can increase sustain!
Pre notched nickel plated brass saddles standard. Other saddle configurations optional.
Bridge Specifications:
E-Sert Specifications:
Pre notched nickel plated brass saddles standard. Other saddle configurations optional.

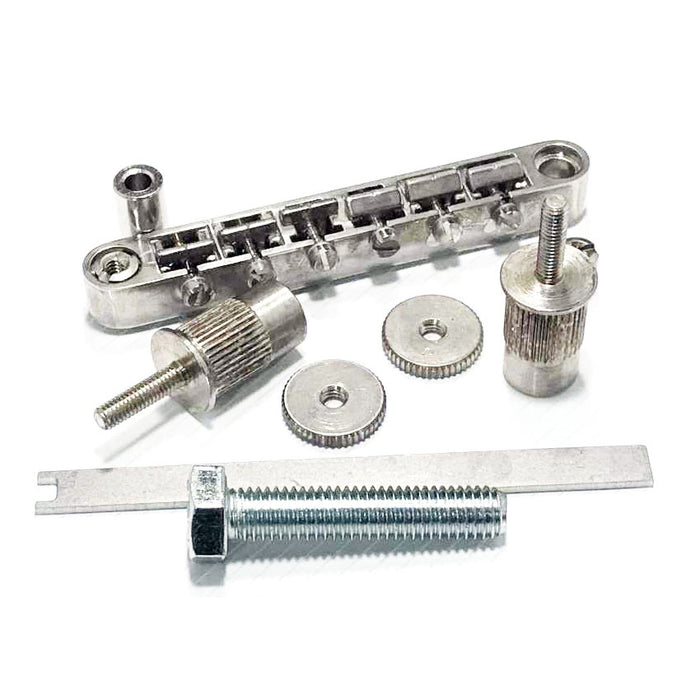

- Tone-Lock™ Bridge
- Pair of 4mm lock nuts
- E-Sert™ replacement bridge studs
- 8mm bolt to easily remove bridge post bushings
- Metal sleeve to cover bridge stud threads during installation to prevent damage
- Lock Nut/Tailpiece Stud Tool – also great for tailpiece studs!
Bridge Specifications:
- Alloy: 70% zinc, 30% aluminum
- Net Weight, including lock nut, brass saddles - 1.755 oz./49.75
- Length: 3.31"/84.1mm
- Saddle radius: 12"
- Post spacing: 2.91"/74.0mm (0.8mm lock nut clearance to accommodate 73.6mm-74.4mm post spacing)
- Post hole diameter (stepped): upper, .293"/7.45mm; lower, .2165"/5.5mm
- String Spread (center-to-center, outer saddles): 2-1/16"/2.0625"/52.39mm
E-Sert Specifications:
- Material: Studs, Steel, plated; Thumbwheels, Brass, plated
- Weight, with thumbwheels: 1.677 oz./47.55g
- Overall length: 1.42” / 36.05mm
- Length below flange: .78” / 19.85mm
- Stud length, above flange: .59” / 15.08mm
- Thread pitch: 4M x .7
- Diameter, knurled section: .484” / 12.2mm
- Diameter, below knurled section: .454” / 11.55mm
- Flange diameter: .565” / 14.35mm
- Flange thickness: .044” / 1.1mm
- Thumbwheels: Diameter: .63"/16mm, Thickness: .11"/2.8mm
