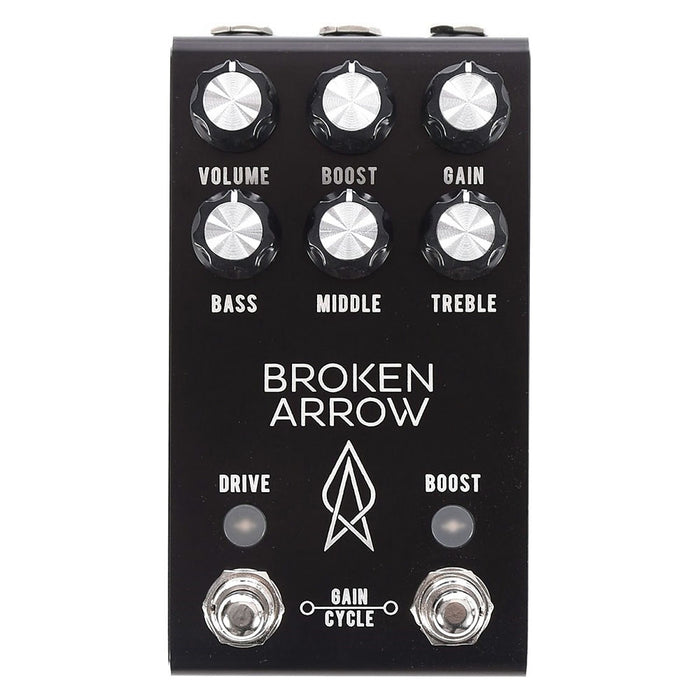

Jackson Audio Broken Arrow V2 Comprehensive Overdrive Pedal Black
There are two sections of the BROKEN ARROW, namely the overdrive circuit and the boost circuit. We’ll delve into the boost circuit first since it is the first circuit in the signal chain.
The boost circuit is in its own true bypass loop which means it can be used independently of the DRIVE circuit. The boost circuit in the BROKEN ARROW is a MOSFET based boost much like the AMP MODE found in our best selling PRISM Preamp pedal. To activate/deactivate the boost circuit simply press the BOOST footswitch.
One of the things that makes the boost in the BROKEN ARROW different from other boosts on the market is that it has 4 presets available. Each preset is EQ’d slightly differently to allow it to alter how it interacts with the overdrive circuit in the BROKEN ARROW or any other pedal you may have in your rig.
- Preset 1 – YELLOW LED: Bright Boost. Very useful for creating a thinner sound or when boosting a thick sounding overdrive.
- Preset 2 – GREEN LED: Mid Boost. Not as thin as the yellow mode, the green mode allows more lows and takes on the character of a mid boost.
- Preset 3 – AQUA LED: Tailored Boost. Most people will find this a perfect setting that will complement most any overdrive setting in the BROKEN ARROW.
- Preset 4 – BLUE LED: Full Range. No tonal coloring here! Just your guitars natural tone!
To select a boost preset, press and hold the BOOST footswitch for more than 1 second and boost program mode will become active.
When in this mode, the BOOST led will flash to indicate that you are in program mode. A quick tap on the BOOST footswitch will cycle the boost presets and you’ll be able to hear these presets change as you cycle through them, assuming that the boost circuit was active when the boost program mode was entered. Once you arrive at a boost preset that you want to use, press and hold the BOOST footswitch for more than 1 second and boost program mode will exit.
Note: When boost programming mode is exited, the selected boost preset is written to the internal EEPROM on the microprocessor and that will become your default boost setting when the boost is engaged even after you power cycle the BROKEN ARROW.
EASTER EGG! There is an easter egg in the boost circuit of the BROKEN ARROW! The boost circuit is based on a MOSFET transistor which is a very popular type of transistor to use for boost circuits because it has many “amp like” characteristics when it clips etc. There can be downsides to this circuit though.
Several very popular MOSFET boost circuits on the market have a very noticeable crackle when their boost knobs are rotated. We fixed this issue in the BROKEN ARROW and our boost is perfectly silent when the boost knob is rotated. The only downside to our fix of this problem is that we lose about 5% of the gain at the highest rotation setting. To most people this would never be a problem as the boost on the BROKEN ARROW is crushingly loud as it it.
However if you are a purist, or you just want to hear the difference, I have good news for you. We included an internal jumper that you can move to go back to stock MOSFET boost operation with 100% gain and all the crackle your heart could ever desire! Quiet or Crackle. The choice is yours!
- STND BOOST – Our version of the MOSFET boost. Same tone, no noise.
- ALT BOOST – Modified version of the MOSFET boost. Same tone, slightly more gain, crackles when you turn the knob.
The overdrive circuit of the BROKEN ARROW is a soft clipping overdrive circuit designed in the same vein as the venerable TS-808. The distinction between the TS-808 and the BROKEN ARROW being that there is no set “mid-hump” in the BROKEN ARROW and the tone is relatively flat when all controls are set at 12:00. Given that the BROKEN ARROW features an active 3 band EQ, there was no need to force a mid bump unnecessarily as a mid bump is easily achieved by increasing the MID knob.
The overdrive portion of the BROKEN ARROW is a completely new way of using and adjusting overdrive! With 4 clipping diode presets and our innovative GAIN CYCLE feature, the BROKEN ARROW will make most other overdrive pedals obsolete!
CLIPPING DIODE PRESETS
The BROKEN ARROW allows for 4 different presets of clipping diodes which themselves drastically alter the tone and feel of the way the overdrive clips and distorts.
To select a clipping preset, press and hold the DRIVE footswitch for more than 1 second and the clipping program mode will become active. When in this mode, the DRIVE led will flash to indicate that you are in program mode. A quick tap on the DRIVE footswitch will cycle the clipping presets and you’ll be able to hear these presets change as you cycle through them, assuming that the drive circuit was active when the clipping program mode was entered. Once you arrive at a clipping preset that you want to use, press and hold the DRIVE footswitch for more than 1 second and clipping program mode will exit.
Note: When clipping programming mode is exited, the selected clipping preset is written to the internal EEPROM on the microprocessor and that will become your default clipping setting when the DRIVE is engaged even after you power cycle the BROKEN ARROW.
- Preset 1 – GREEN: Classic Screamer. Two symmetrical silicon diodes give the classic drive and compression that the Tube Screamer is known for.
- Preset 2 – MAGENTA: Asymmetric Clipping. Three asymmetric silicon diodes will clip the top and bottom portions of your guitars waveform differently resulting in a more complex and interesting tone. This sounds great when laying down aggressive rhythm parts!
- Preset 3 – BLUE: Symmetrical Clipping. Four symmetric silicon diodes will clip the top and bottom portions of your guitars waveform evenly which gives a more focused and direct tone. One notable pedal that uses this style of clipping is the Timmy.
- Preset 4 – AMBER: Vintage Marshall. Two RED LED’s are used to symmetrically clip the top and bottom portions of your guitars waveform evenly. The LED’s allow MUCH higher headroom so your tone will stay more open and less compressed much like a vintage Marshall.
Changing clipping diodes are a great way to radically change how an overdrive pedal sounds and feels but oftentimes the change that you perceive has more to do with a change in volume than an actual change in tone….until now!
When we were designing the BROKEN ARROW we knew we wanted to give the overdrive section a lot of tonal flexibility and most importantly make that flexibility useful on stage. So when changing clipping diodes we included circuitry that level matches the output of the pedal as various clipping diodes are selected. So now you can select between all four clipping options, and your volume level will remain constant. More importantly, the difference that you hear between the clipping modes will be because of the difference in how those clipping diodes sound and not because your volume is jumping all over the place as it does with other designs.
The most exciting feature of the BROKEN ARROW is the new feature that we developed called GAIN CYCLE. GAIN CYCLE takes the GAIN knob setting, which selects your maximum gain, and divides that level of gain into 4 equal parts. Say for instance you have your GAIN knob set at the maximum setting or in other words, 100% gain. Every time you press both footswitches simultaneously, the gain of the pedal will jump up 25% until you get to 100%. The following press after 100% will cause the gain cycle to start again at 25%.
It’s important to remember that GAIN CYCLE setting #4 (100%) will be as much gain as you have the GAIN knob set for. Think of the GAIN knob on the BROKEN ARROW as your maximum gain with each GAIN CYCLE setting being a percentage of that maximum value.
The brightness of the DRIVE led will change to let you know which percentage of gain you have selected. The higher the percentage, the brighter the DRIVE led. For instance:
- GAIN CYCLE #1 – DIM LED – 25% of GAIN knob value.
- GAIN CYCLE #2 – BRIGHTER LED – 50% of GAIN knob value.
- GAIN CYCLE #3 – BRIGHT LED – 75% of GAIN knob value.
- GAIN CYCLE #4 – VERY BRIGHT LED – 100% of GAIN knob value.
Every time you select GAIN CYCLE, that setting will be written to the microprocessor’s EEPROM chip so when the BROKEN ARROW turns on again, that setting will be remembered.
3-BAND ACTIVE EQ
To top it off, the DRIVE circuit of the BROKEN ARROW has a 3 band active EQ. The EQ circuit features a studio grade EQ that gives tremendous tonal flexibility to the BROKEN ARROW. Based on the legendary Baxandall EQ that is featured in countless studio EQ’s, the BROKEN ARROW EQ takes this circuit and tailors it for guitarists! We spent tons of time on this EQ dialing it in so it would hit all the frequencies that guitarists need to adjust, and then sweetened it by removing the ear fatiguing highs and lows that can appear at extreme settings.
EQUALIZER CIRCUIT FEATURES
- Studio grade EQ with High Bandwidth and Flat Response at 12:00
- +/- 12dB Boost/Cut per control
- Center Detents on the pots that make it easier to get back to a neutral or flat response.
