Home Kluson 3+3 Revolution Series Locking E-Mount Tuners Chrome KREL-3-C

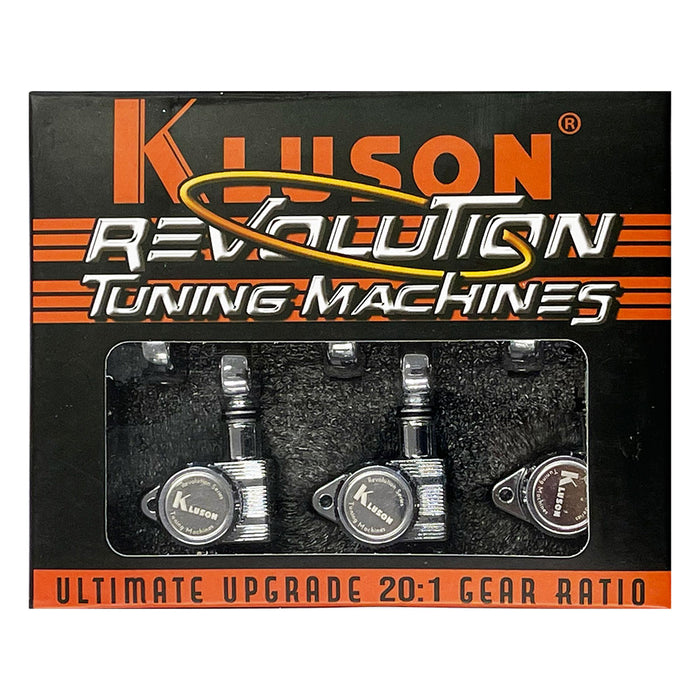

Kluson 3+3 Revolution Series Locking E-Mount Tuners Chrome KREL-3-C

Kluson 3+3 Revolution Series Locking E-Mount Tuners Chrome KREL-3-C

by Kluson
$77.00

Share this:

Share on Facebook Tweet on Twitter Share on Google+ Pin on Pinterest
Kluson's® new Revolution E-mount tuning machines are die-cast construction and have the brand new 20:1 gear ratio and are available in both locking and non-locking formats. This all-new Kluson® design incorporates today's standard 10mm peghole mounting with a single screw at 6 O'clock low in conjunction and screw-in bushing and washer.

Kluson® designed this new tuning machine type to fit many of the electric and acoustic instruments manufactured post 1970, giving you the option in many cases for a non-modification required upgrade in both performance and appearance. This new Revolution E-mount tuning machine set is available in black, chrome, gold and nickel finishes and all mounting hardware needed is included.

Specifications:

  • Peghole requirement = 25/64 in. (10mm) peghole
  • Mounting Screws = 1 screw located at 6 O\'clock low
  • Bushing = Screw in type hex head
  • Housing Material = die-cast zinc
  • Gear Ratio = 20:1
  • Gears = Steel worm gear / brass ring gear
  • Locking mechanism = Wheel on back of housing
  • String Post Diameter = 6mm
  • String Post Length = 1 3/32 in. (27.8mm)
  • String Post hole Height = 29/32 in. (23mm) from housing back
