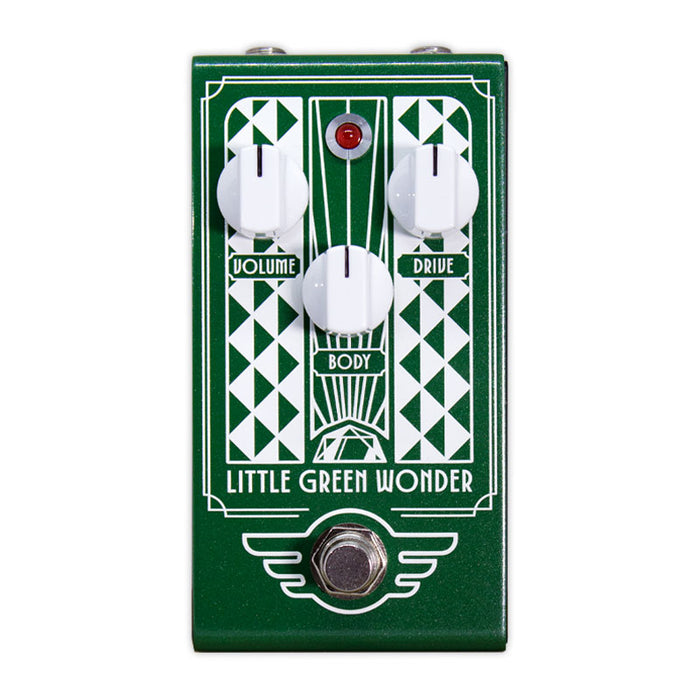

Mad Professor HANDWIRED Little Green Wonder Overdrive Booster
After 20 years of its initial release, the legendary Little Green Wonder returns to the updated Handwired series.
The LGW is a high headroom overdrive/booster featuring a special EQ curve and focused overdrive making it the perfect pedal to accompany any guitar or amplifier. With the unique Body control, you can fine tune the pedal to work with both single coil and humbucker pickups. The LGW has a wide range of gain so you can use it as a standalone overdrive or stack it with other drive pedals or boost an amp.
The new LGW features the original circuit with all the same updates as the previous Handwired pedals. These include high quality through hole components, Alpha pots and switches and Switchcraft jacks all housed in a rugged sheet metal enclosure with top mounted jacks. All Handwired series pedals are handmade in Finland.
CONTROLS:
VOLUME: Set the overall output level of the pedal.
DRIVE: Controls the amount of saturation, sustain, and harmonic content.
BODY: Sets the frequency of the overdrive. Turn CCW for more bass and low-mids with a slight treble boost. Turn CW to get a more mid-focused tone with less bass.
TECHNICAL SPECIFICATIONS:
Current draw at 9VDC approx. 4mA
Input impedance - 500 K
Output impedance - 50 K
Voltage supply range - 7.5-18V
True bypass
CAUTION! Never operate the unit with its bottom removed or damage will most likely occur.
POWER REQUIREMENTS:
DC eliminator 2.1 mm plug center negative and positive sleeve.
The Little Green Wonder is protected against wrong DC eliminator polarity.
Use recommend voltage for best results.
