Home Mesa Boogie Tone-Burst Boost Overdrive Pedal

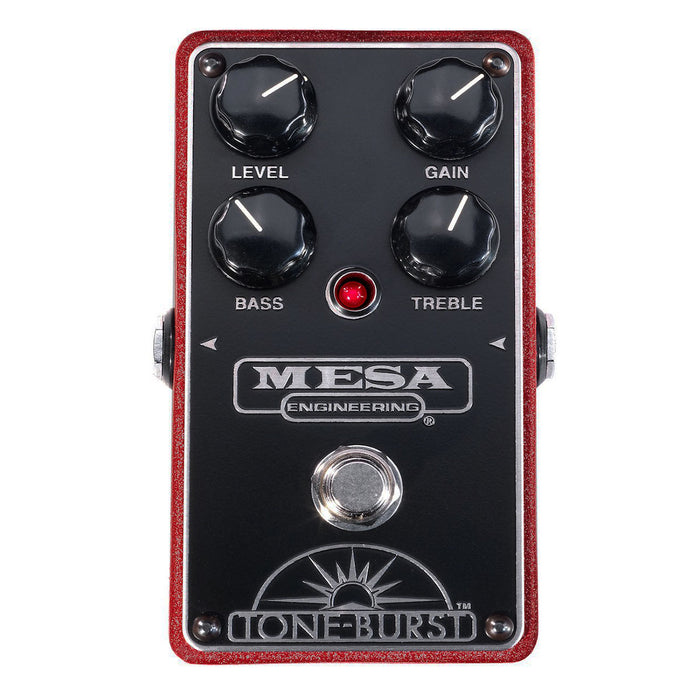

Mesa Boogie Tone-Burst Boost Overdrive Pedal

Mesa Boogie Tone-Burst Boost Overdrive Pedal

by Mesa Boogie
$179.00

Share this:

Share on Facebook Tweet on Twitter Share on Google+ Pin on Pinterest
The TONE-BURST™ Boost/Overdrive offers a virtually transparent gain range usually associated with “clean” boost pedals. However, the TONE-BURST has enough gain to boost your guitar to the threshold of clip and slightly beyond, making it far more useful for a variety of applications. It’s incredibly powerful for adding boost, drive and/or EQ to any guitar and amp combination. Whether using it as a utility to boost the output of single coils to match a humbucker or as a subtle overdrive when a standard overdrive may be too much, the TONE-BURST is an incredibly useful and expressive pedal that makes the best things sound even better!

PRODUCT FEATURES

  • Designed and Handcrafted in Petaluma, California, USA
  • True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
  • Gain Control allows you to dial in the perfect amount of boost or mild overdrive
  • Master Level Control provides a variable range of signal boost up to +20dB
  • Bass & Treble Controls provide +/- 12dB of EQ boost or cut for exceptional tone shaping
  • On/Off Status LED
  • 9V Battery Powered Externally Powered (optional) via External Power Jack Input
  • Input & Output Jacks (Nominal Input -20dB)

SPECIFICATIONS

  • Dimensions (W/D/H): 2.87" x 4.77" x 2.28" (73mm x 122mm x 58mm)
  • Weight: 0.802 lbs. (364g) with battery, 0.702 lbs. (319g) without battery
  • True Bypass Switching
  • Battery Type: 9VDC (one)
  • Power Consumption (Current Draw): 9VDC/15mA
  • WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
  • Input Impedance: 2M Ohm (500k Ohm minimum)
  • Output Impedance: 10k Ohm
