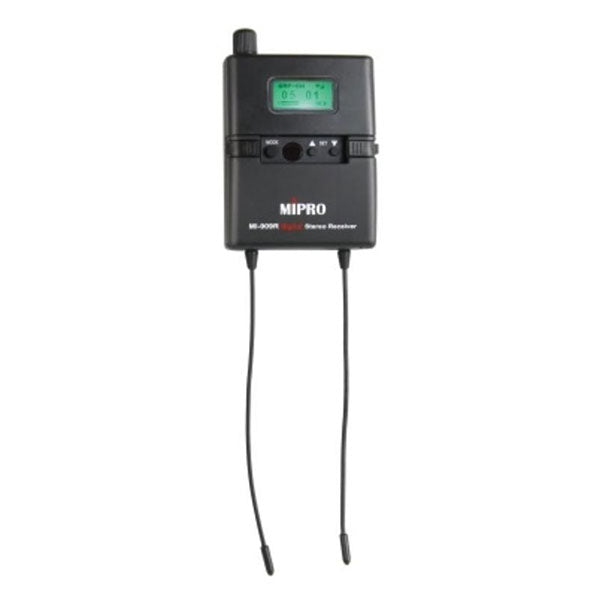

MI-PRO MI-909R Digital Stereo Bodypack Receiver Frequency 5E
by MI Pro
Sold out
$474.00
The MI-909R operates in a wide 64 MHz bandwidth and it has easy to use controls and indicators with a backlit LCD screen. Advanced dual-antenna diversity design eliminates signal dropouts and enhances signal stability. Featuring a lightweight, exceptionally durable magnesium alloy bodypack case, the MI-909R is ideal for professional installations and live applications. Proprietary digital encryption provides secure audio transmission, preventing unauthorized listening in conferences, meetings and language interpretation applications.
- Industry’s most compact and smallest housing.
- Featuring a lightweight, yet rugged, magnesium & glass-fiber reinforced plastic case for stage applications.
- Backlit LCD screen with superior features and advanced function settings.
- Dual-antenna diversity design enhances RF signal stability and extends transmission range.
- Dual unbreakable soft antennas.
- Selectable stereo, balanced, mono & mixed output modes.
- Selectable EQ settings.
- Fast and easy menu controls and indicators accessed by three buttons.
- Housing Industry’s smallest, lightweight magnesium & glass-fiber reinforced plastic case
- Frequency Range: 470 ~ 639 MHz, 705 ~ 960 MHz (country dependent)
- Bandwidth: 64 MHz
- Preset Frequency: 12 non-interference compatible frequencies in group 1 ~ 10.
- 16 non-interference compatible frequencies in group 11 ~ 16.
- 216 preset frequencies in total.
- Channel Grid: 25 kHz
- Channel Set-Up: ACT Sync
- Frequency Response: 20 Hz ~ 15 kHz (stereo)
- Stereo Separation: > 95 dB
- Max. S/N ratio 95 dBA (stereo)
- T.H.D < 0.1% @ 1 kHz
- Modulation Type: Digital modulation
- Spurious Emissions: < 4 nW
- Operating Temperature -10℃ ~ +60℃
- Receiving Mode Digital diversity receiving
- Oscillation Mode: PLL Synthesized
- Frequency Stability: ± 0.005% (-10℃ ~ +60℃)
- Sensitivity: 10 μV input level, S/N > 90 dB (stereo)
- Volume Control: 126 dB (1 dB step)
- LCD Display: AF / RF meters, Battery status, Group & Channel, R/L balance Output Power: Left / Right × 120 mW @ 16 Ω
- Earphone Impedance : ≧ 16 Ω
- Earphone Output Jack: Ø 3.5 mm stereo phone jack, Left / Right × 120 mW @ 16 Ω
- Current Consumption: Approx. 170 mA
- Operating Time Approx. 8 hours
- Dimensions: (W × H × D) 63 × 82 × 23 mm / 2.6 × 3.2 × 0.9 "
- Net Weight: Approx. 93 g / 3.3 oz
- Accessories: E-8S or E-8P Earphones (Optional)
- Power Supply: 2 × AA alkaline
- Note: Refer to actual product in the event of product discrepancy.
