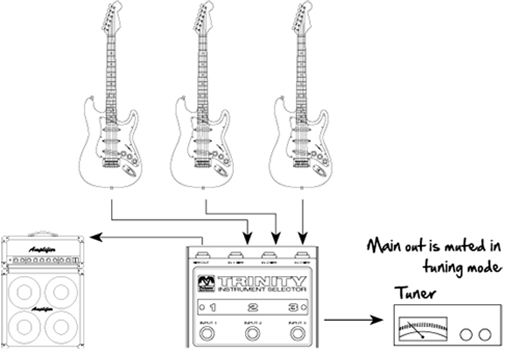

The Palmer TRINITY provides easy switching between guitars without unplugging and the associated noise. Three instruments can be connected, which are selected by footswitch and fed to the output. Each input has an adjustable booster providing up to 12dB gain (4:1), to balance instrument levels without changing the amp settings. In addition, the Trinity features a dedicated tuner output.

• Product type: switch
• Type: instrument switcher
• Switching function: input switcher
• Inputs: 3
• Input connectors: 6.3 mm Jack
• Input impedance: 1 M Ohm(s)
• Outputs: 2
• Output connectors: 6.3 mm Jack
• Output impedance: < 50 k Ohm(s)
• Transformer isolated outputs: no
• Display: channel number
• Controls: 3 x footswitch, 3 x input gain
• Operating voltage: 9 V DC power supply
• Power consumption: 60 m A
• Cabinet material: sheet steel
• Cabinet surface: powder coated
• Width: 155 mm
• Depth: 135 mm
• Height: 50 mm
• Weight: 0.95 kg

Condition: This unit is brand new, fresh from the factory. Vision Guitar is an authorized Palmer Audio Tools dealer.
