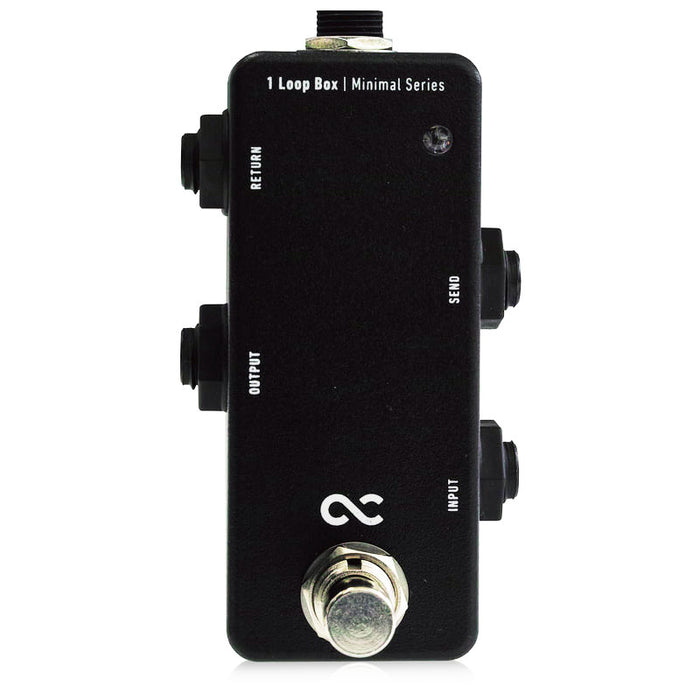

One Control OC1L Minimal Series 1 Loop Box
The 1 Loop Box has many different uses. When then 1 Loop is bypassed the input signal will go directly out of the output jack but, when the pedal is activated the input signal will come out of the send, and the signal that goes into the return will come out of the output jack.
AB Box
If you use the INPUT, SEND and OUTPUT only, the 1 Loop can also be used as an AB BOX. When you step on the footswitch you are essentially choosing whether the signal comes out of the send or out of the main output. That being said, you can attach whatever you’d like to the SEND and OUTPUT and toggle between the two of them. For example, you can switch between two amps or use the send as a tuner/mute switch.
Instrument/Input Selector
*If you only use the INPUT, RETURN and OUTPUT, the 1 Loop Box can also be used as a instrument/input selector. Simply attach one input signal into the INPUT and the second signal into the RETURN. When the pedal is turned on the signal going into the RETURN will be the OUTPUT signal and when the pedal is off, the signal going into the INPUT will be the OUTPUT signal.
Mute Switch
*If the INPUT and OUTPUT are the only two jacks being used on the 1 Loop, it becomes a mute switch. When the Pedal is bypassed the signal will go directly the OUTPUT. When the pedal is in use, the signal will be muted.
Size and Portability
*In order to minimize size the 1 Loop cannot use a battery but because of its passive circuit capabilities it doesn’t need power to operate. Please note LEDs will not function when not connected to a power supply. Recommended power supply is the One Control EPA-2000.
