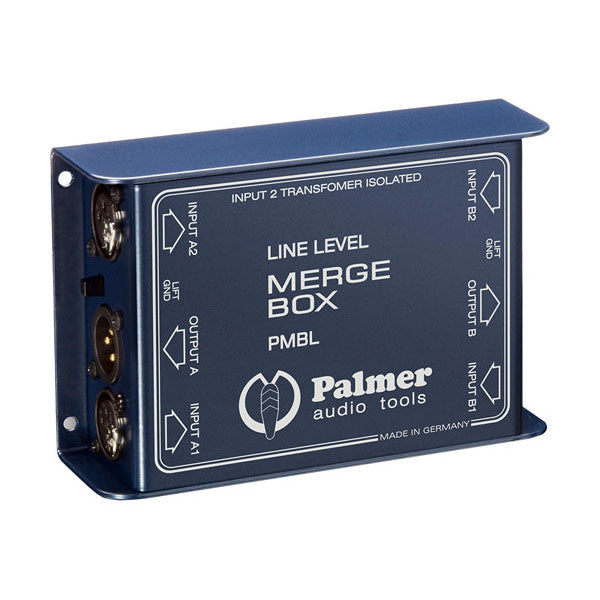

Palmer PMBL Passive Dual Channel Line Merger
by Palmer
$299.99
he PMBL Passive Dual Channel Line Merger is a two-channel line-level merge box. Each channel has two balanced XLR/F inputs and the input signal is merged through a resistor network to an XLR/M output. The top side input is transformer isolated and the included transformer technology allows for an unbalanced top side input to be sent out balanced. Examples of uses for the Passive Dual Channel Line Merger include routing two mixing desks to one power amp or mixing a stereo signal down to mono.
- Inputs: 4
- Input Connectors: XLR
- Input Impedance: 2 kOhms
- Outputs: 2
- Output Connectors: XLR
- Output Impedance: 600 Ohms
- Output Level: Maximum: +20 dBu Balanced
- Type: Passive combiner
- Controls: Ground lift
- Material: Sheet steel
- Powder-coated surface
- Dimensions (W x D x H) 4.3 x 4.9 x 1.5" / 110.0 x 125.0 x 38.0 mm
- Weight 1.3 lb / 0.6 kg
