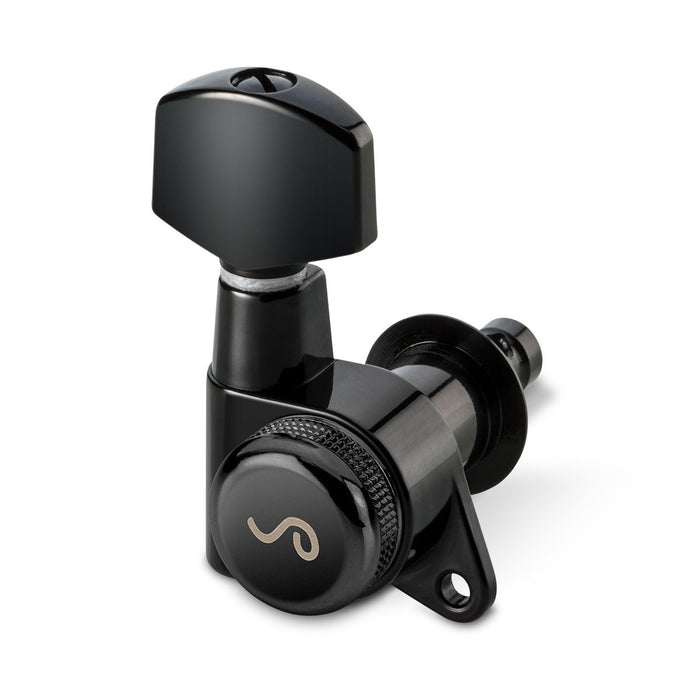

Schaller M6 135 6IL Locking Staggered Tuners 18:1 Ratio Black 10020420.01.50
Since the launch of the open back GrandTune™ tuning machine series in 2014 Schaller’s 18:1 Velvet-Tec™ technology has found its way onto most of the finest headstocks of our industry.
Introducing the all new M6 and M6 Mini tuning machine series – featuring 18:1 Velvet-Tec™ and LX6-Lube™ for unparalleled tuning precision and comfort. The new M6 shares the identical footprint with its predecessor and can easily be swapped with no modifications necessary.
Additionally the new M6 step-washer will allow for trouble-free installation and perfectly and permanently centered stringposts. A true Schaller innovation that improves installation and provides added protection to your M6’s longevity and flawless operation. The M6 step-washer instantly centers your stringpost and makes the drilling of two separate diameter holes into your headstock obsolete. The added support eliminates tilting and releases stress from the stringpost and the mounting screw in the back.
Top Locking post:
Please unscrew the black TopLocking screw as far as it will go and then pull it off. Install the machine head on the headstock and then press the TopLocking screw onto the post and screw it tight.

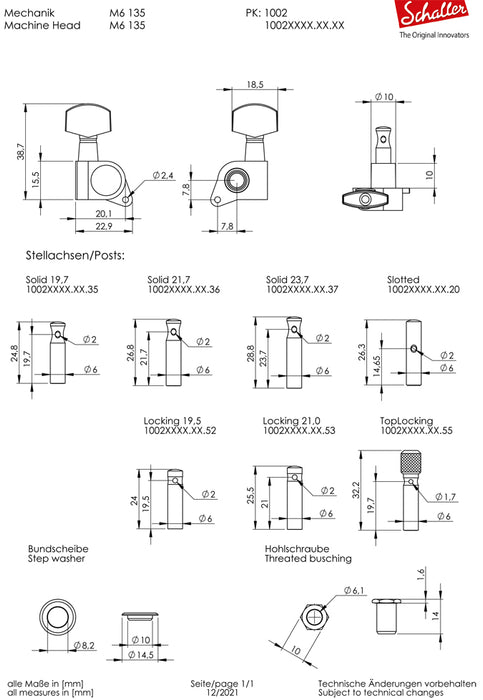

- Gear ratio 1:18
- 6 in line tuner with small metal button
- Drill hole button: diameter 4.2 mm with driving surface 3.6 mm
- Black Chrome
- 6 threaded bushings (only for posts for solid headstock)
- 6 step washers
- 6 mounting screws
- Locking version: staggered string posts with 3x locking posts 19,5 and 3x 21,0mm
