Selah Effects Q:Expander (Expansion For Quartz Timer V2
Selah Effects Q:Expander (Expansion For Quartz Timer V2

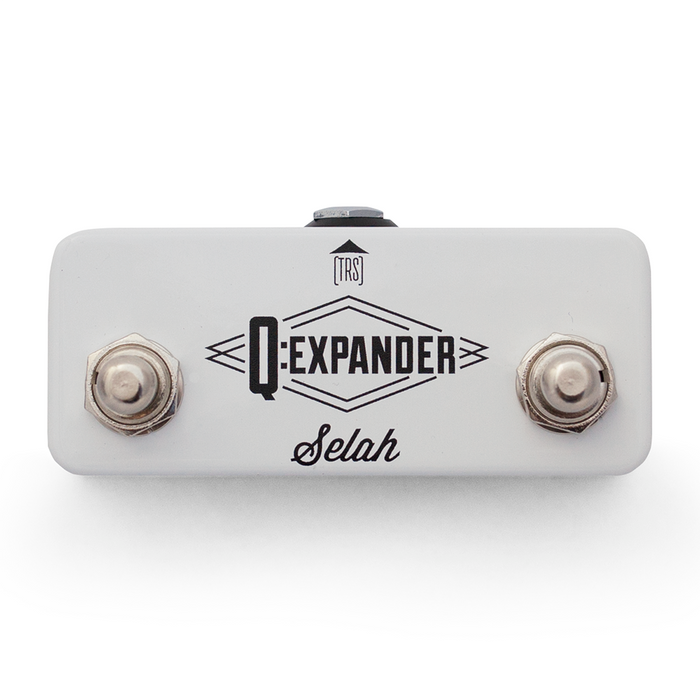

The Q:Expander creates an easy way to extend you Quartz Timer V2 and allow for much quicker and easier control of your pedalboard.The Quartz Timer V2 can accept up to 6 extra footswitches, therefore you will be able to plug in up to 3 Q:Expander pedals in to your Quartz.Just like the on-board footswitch, these footswitches can be completely customised to your liking. Each footswitch has a function that can be activated when tapping, and another that activates when holding for 1 second.
- Quartz V2 + 0 Q:Expander = 2 assignable functions
- Quartz V2 + 1 Q:Expander = 6 assignable functions
- Quartz V2 + 2 Q:Expander = 9 assignable functions
- Quartz V2 + 3 Q:Expander = 14 assignable functions
We are adding functions all the time, but currently there are the following available:
- TAP TEMPO Ð Consecutive taps will set a new tempo.
- NEXT PRESET Ð This will take you to the next preset in the setlist.
- PREV PRESET Ð Will take you to the previous preset in the setlist
- TGL CLK IN Ð Toggle whether the Quartz ignores or receives incoming MIDI Clock.
- TGL AUDIO IN Ð Toggle whether the Quartz ignores or receives an incoming audio metronome.
- TGL REPEAT Ð Starts or stops the custom repeating MIDI message. A message sent every quarter note.
- TGL CLK OUT Ð Starts or stops the sending of MIDI Clock.
- TGL AUX Ð Starts or stops the sending of tap signals from the 4 Aux outputs.
- TGL ALL TIME Ð Starts or stops the sending of tempo data from MIDI Clock, the 4 Aux outputs, and the repeating MIDImessage, all at once.
Each function can also be used to send a list of custom Midi messages. These messages can be used to set any parameter that your Midi capable devices allow. This means that you could set your Q:Expander to only bank up and down on a specific pedal and not affect anything else, for example. You could even send Note data to play a Midi Note if you like. The combinations are endless.
Additionally each footswitch can also take you to a specific Quartz preset. This allows you to have favourite presets set and always available, for example.
Condition:These are brand new, fresh from the factory. Vision Guitar is an authorized Selah Effects dealer!
