Seymour Duncan TS-2B Triple Shot Mounting Ring USA Les Paul Bridge 11806-04-B

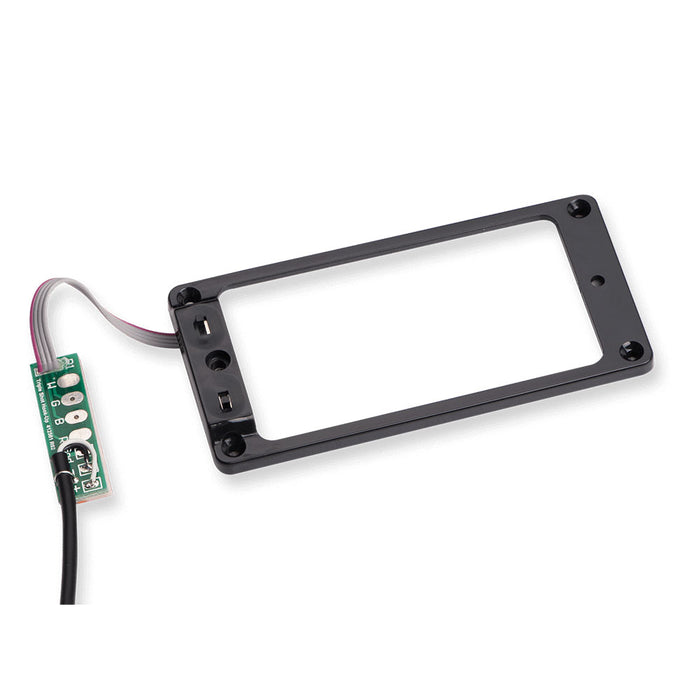

Expand your tonal palette by accessing three unique tones from a humbucker, thanks to this mounting ring that holds two small switches.
This “stealth” pickup switching device allows you to access series, parallel and split wirings with a standard humbucker. And it’s easy to install. Just solder your pickup leads to a small color-coded circuit board. That’s it. Push the two switches towards each other for standard series wiring; away from each other for parallel wiring; and both towards one coil (either one) to shut that coil off.
For use with nearly any humbucker pickups with four-conductor cable: Seymour Duncan or otherwise. It is the perfect match for the P-Rails.
- Bridge pickup only
- Coil-tapping without annoying push-pull pots or switches!

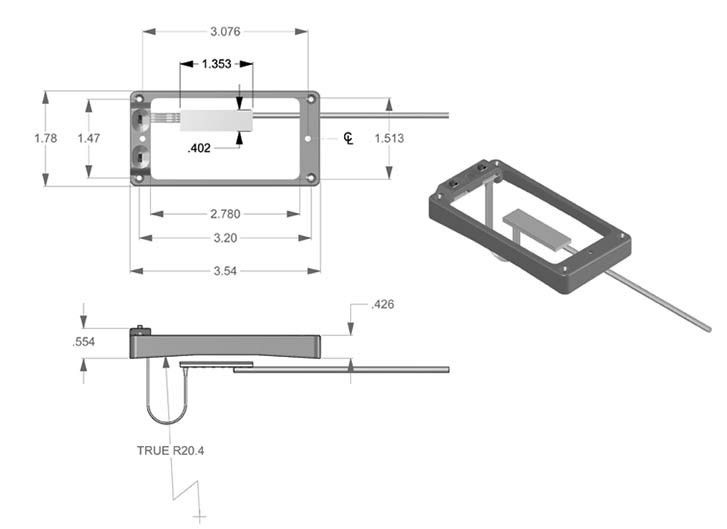

- Fits USA Les Pauls (dimensions are in the pictures above)
- Great and useful design to expand tonal range without major mods to your Les Paul.
