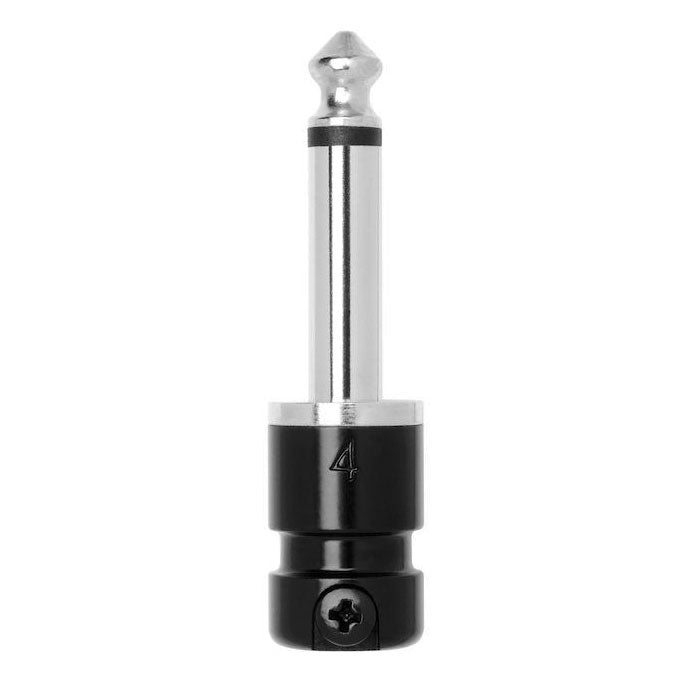

SquarePlug SPS4B 1/4" Low-Profile Soldered Short Straight Plug
The SPS is the shortest solder type 1/4" connector that features a strain relief, to date! It protrudes by only 21mm when plugged in and has an OD of 13mm [just under 14mm around the screw heads area].
SPS fits on any controller/patch bay/switching system/interface and features a unique 2-screw cable holding mechanism that doubles as a discreet yet effective cable identification system.
Effective strain relief design!
The cable is firmly held in place by two lateral screws preventing any tension on the solder joints. It is a very effective way to prevent the cable from moving in any direction.
There's absolutely no risk of damaging the cable by using this system. Tests have been carried out on a number of cables with soft to more harder outer jackets with excellent results.
You can safely hold the cable and pull it from whatever socket it's plugged in with zero risk of harming the cable or the solder joints.
Length: 21mm/0.82" [compare against 25.4mm / 1" for the Switchcraft 380 that has no cable clamp for strain relief]
- OD: 13mm/0.51"
- Compatible with the CA-0492, CA-0678, and Canare GS-4 Cabling
- 5mm for the SPS4 [allows to pass cables up to 4.8mm OD]
- SPS4 is a good match for our RA SP400 connector
