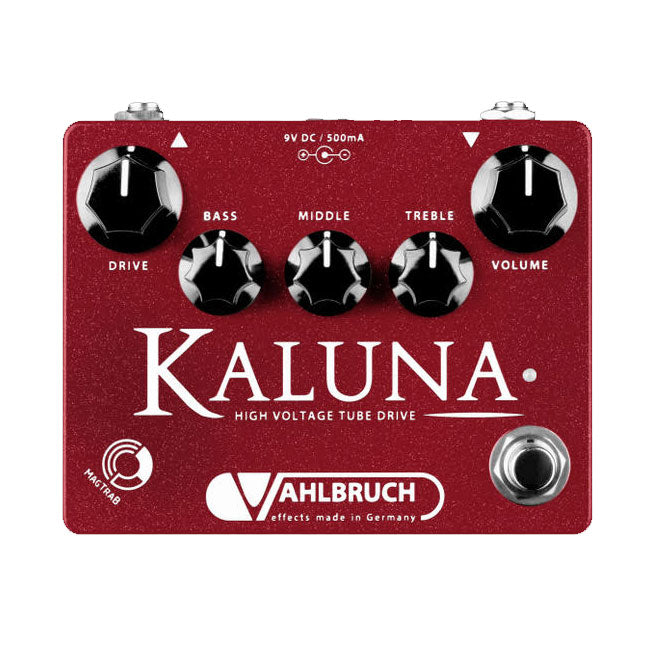

Vahlbruch Kaluna High Voltage Tube Overdrive Pedal Limited Red
The KALUNA's unique circuit bears extraordinary touch sensitivity. Every musical nuance generated from your picking attack is exactly reproduced. The post tube, three band tone controls are extremely responsive, which is perfect for tailoring your tone to your specific gear and sound. The Vahlbruch KALUNA tube pedal definitely sounds different compared to solid state pedals and with its great clarity it will never mask the natural sound of your guitar and amplifier.
This pedal is equipped with my unique Magnetic Transducer Button = "MagTraB" switching technology:
Inside the button a magnet is integrated which position is measured by a sensor on the circuit board. If the button is now moved, e.g. if it is pressed downwards, the position of the magnet will also change. The sensor measures this change without any mechanical contact to the button and the information is send via a micro-controller to a gold-plated relay, which then does the actual audio signal switching. The advantages:
- MagTraB buttons are as good as indestructible!
- MagTraB delivers an almost infinite number of switching cycles - many, many millions!
- No annoying, mechanical switch clicks!
- Instead, the "MagTraB" push-buttons switch very smooth and quiet!
In only 4 steps you can choose if the pedal powers up in "true bypass" or "on"-mode:
- Step 1: Disconnect the power supply.
- Step 2: Hold down the "MagTraB" button.
- Step 3: Reconnnect the power supply, while remain pressing the "MagTraB" button.
- Step 4: Release the "MagTraB" button.
In order to undo the programming, simply repeat the steps 1-4. The next time your pedal powers up, it will automatically start in "on" in "true bypass" mode, just depending on what you have stored.
- Sturdy and unique "MagTraB" switching technology
- New and completely original design featuring a ECC83/12AX7 tube that is 100% pure analog tone!
- The tube operating voltage of 250 volts is generated inside the pedal from your standard 9V power line.
- Intuitive DRIVE and VOLUME controls
- Extremely responsive, post tube, three band tone controls providing a boost/cut range of +/- 12dB
- The EQ is perfect for tailoring your tone to your specific gear and sound
- Input impedance: 1.0M Ohms, output impedance: 100 Ohms
- Current consumption: 500mA
- Dimensions: 120mm x 100mm x 48mm
- Weight: 375g
- Handmade in Germany
This pedal requires an external regulated 9V/500mA power supply (optional). I recommend the BOSS PSA 230S or any other low noise power supply with the polarity: postive@ring / negative@tip. Do NOT supply this pedal with more than 9 volts!
During the tube warm-up period, the status LED will flash for 30 seconds while the pedal remains in bypass mode. After this the KALUNA is ready to go and the pedal can be activated.
