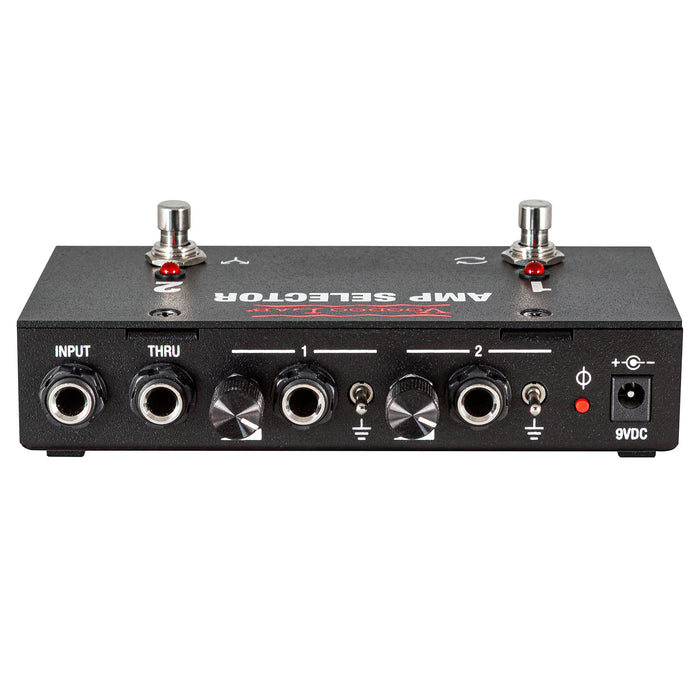

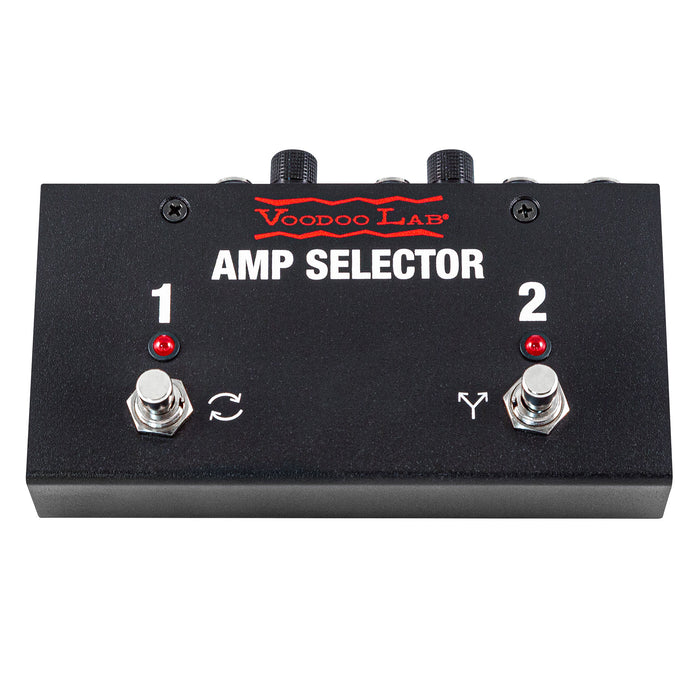

Voodoo Lab Amp Selector ABY Dual Isolated Output Switch/Blend
Route your guitar signal anywhere with perfect clarity and zero noise
Connect to amps, modelers, and your DAW with stunning fidelity Enjoy noise-free, full-bandwidth tone using studio-grade transformers and ground lifts Preserve your tone with transparent buffer and silent switching Balance any setup using independent level controls and selectable phase invert Customize operation with ABY, Direct Access, and
Send Your Sound Anywhere
Common passive ABY boxes load down your pickups, allow ground hum, and make switching noisy. Amp Selector ABY is anactive guitar ABY pedal that solves all of these problems with two transformer-isolated outputs, letting you route to multiple destinations without compromise. Run dual amps, combine tube amps and modelers, and capture DI signals for reamping — whatever your rig demands.
Premium Transformers for Superior Tone
Featuring custom nickel-core transformers, Amp Selector ABY delivers exceptional frequency response and clarity that standard transformers can't match. The high-inductance permalloy design enhances your tone, preserving low-end punch and high-frequency detail, so your sound stays full and dynamic. Plus, independent ground lift switches on each output let you instantly kill the gnarly noise that's common with ABY setups.
Keep Your Tone Pure
Running multiple amps with passive switchers or long cables robs your signal of highs and presence. Amp Selector ABY's studioquality buffer is built around the Texas Instruments LME49720, an elite audio op-amp with vanishingly low noise and exceptional clarity so your tone stays pure from input to output.
Switch Without Pop
Most ABY pedals use noisy mechanical switches that click and pop. Voodoo Lab Quiet Switching™ — using proprietary JFET and zero-crossing technology — delivers silent operation for smooth transitions.
Fix Phase and Balance Easily
When your two-amp rig is out of phase, it sounds hollow and thin. Selectable phase invert lets you switch polarity to restore your tone. Plus, quickly balance or blend amps with independent level controls. Select Amps Your Way Amp Selector ABY lets you choose between three modes. A/B/Y for classic switch and blend operation, Direct Access for dead simple independent on/off control of each output, or Exclusive mode where a single button press switches from one amp to the other.
Key Features:
- Dual amplifier outputs with independent level controls and ground lifts
- Studio-grade nickel-core isolation transformers
- Ultra-transparent audio buffer
- Voodoo Lab Quiet Switching™
- Selectable phase invert
- Thru output for tuner, DI, or DAW reamping
- Powers from any isolated 9VDC output
- Dimensions: 6" wide x 3.75" deep x 1.38" tall (153 x 96 x 35 mm)
- Weight: 0.7 lbs. (0.32 kg)
- 5-year warranty
